STARTER MOTOR ASSEMBLY

2009 PROWLER 700 XTX 4X4

Scroll / pinch to zoom · drag to pan · double-click resets

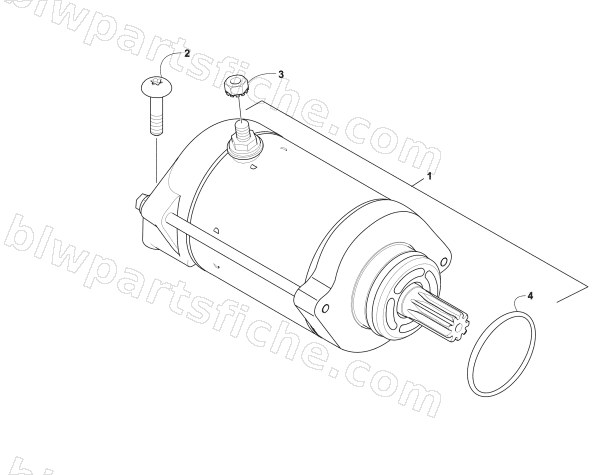

STARTER MOTOR ASSEMBLY diagram
# Part No. Description Qty Price
1 0825-024 MOTOR,STARTER-ENGINE (PD 11.25) 1 $268.95
2 8476-625 SCREW,MACH-TSTRH M6X1.0X25 Z&Y 1 $1.78
3 0623-038 NUT,HEX M6 Z&Y-SEMS (W/WASHER) 1 $0.26
4 0830-228 O-RING,33.5MMX3MM 1 $5.09
