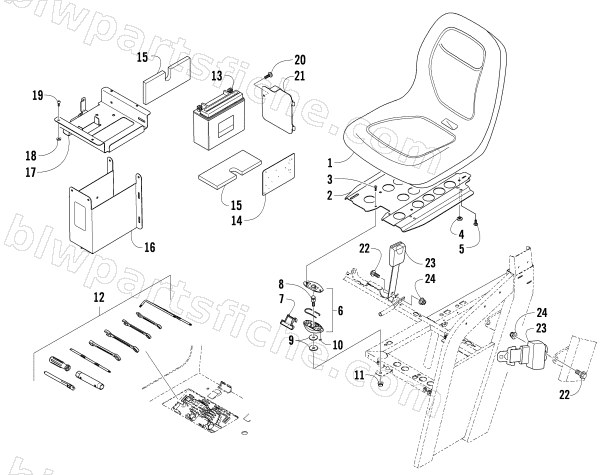

SEAT, BATTERY, AND TOOL KIT ASSEMBLY
2009 PROWLER 700 XTX 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1506-925 | SEAT,LOW BACK | 1 | $316.95 | |
| 2 | 2506-780 | PLATE,SEAT-BASE PAINTED | 1 | $90.95 | |
| 3 | 8468-620 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 BLK | 1 | $0.68 | |
| 4 | 0406-877 | BUMPER,SEAT | 1 | $3.57 | |
| 5 | 8468-820 | SCREW,MACH-TSPNH M8X1.25X20 CL8.8 BLK | 1 | $1.50 | |
| 6 | 2706-164 | SEAT LATCH-MFG ASSY | 1 | $15.11 | |
| 7 | 2606-854 | LEVER,RELEASE-SEATLATCH | 1 | $9.59 | |
| 8 | 0423-559 | STUD,LATCH-SEAT | 1 | $13.73 | |
| 9 | 0423-073 | WASHER,FLAT-1.38 OD X .413 ID X.134 TH | 1 | $1.50 | |
| 10 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 11 | 8424-002 | NUT,HEX-FLG M10X1.25 CL8 Z&Y | 1 | $0.68 | |
| 12 | 0444-122 | KIT, TOOL | 1 | $24.77 | |
| 13 | 0745-230 | BATTERY,E START-TURBO W/FOIL(0645-432) | 1 | $259.95 | |
| 14 | 0406-380 | PAD,BATTERY | 1 | $4.26 | |
| 15 | 0406-227 | PAD,BATTERY-LOWER | 1 | $3.57 | |
| 16 | 1506-841 | BOX,BATTERY-PAINTED BLK | 1 | $98.95 | |
| 17 | 2506-757 | PANEL,ELECTRICAL-PAINTED BLACK | 1 | $97.95 | |
| 18 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 19 | 8476-612 | SCREW,MACH-TSTRH M6X1.0X12 Z&Y | 1 | $0.95 | |
| 20 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 21 | 1506-839 | COVER,BATTERY BOX-PAINTED BLK | 1 | $23.39 | |
| 22 | 8408-025 | SCREW,CAP-HFH M10X1.25X25 CL8.8 Z&Y | 1 | $3.16 | |
| 23 | 2516-336 | BELT,SEAT-ASSY-2 PT | 1 | $199.95 | |
| 24 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 |
