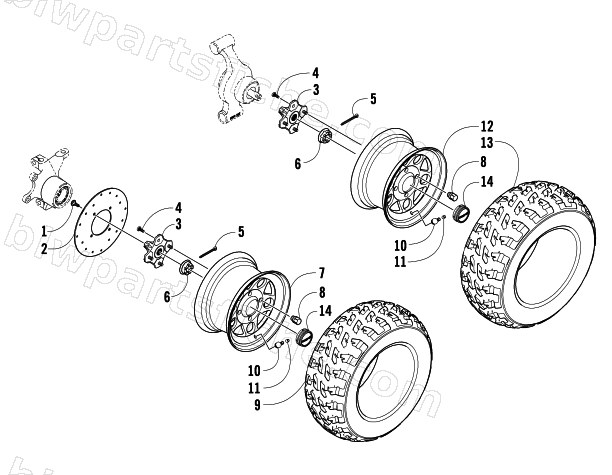

2009 Arctic Cat PROWLER 700 XTX 4X4 LE — WHEEL AND TIRE ASSEMBLY
2009 PROWLER 700 XTX 4X4 LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-557 | SCREW,SHLDR-TSPH M6-1.0X18MM Z&Y W/2353 | 1 | $0.68 | |
| 2 | 1436-418 | KIT,BRAKE DISC (1402-455) | 1 | $56.95 | |
| 3 | 1502-433 | HUB - ASSEMBLY | 1 | $180.95 | |
| 3 | 1502-435 | HUB - ASSEMBLY | 1 | $180.95 | |
| 4 | 0402-974 | STUD,WHEEL-M10X1.25 (Z&C) | 1 | $3.16 | |
| 5 | 0423-407 | PIN,COTTER-1/8X1-1/2 | 1 | $0.40 | |
| 6 | 0423-607 | NUT,CASTLE FLANGE-M22 X 1.5 | 1 | $6.20 | |
| 7 | 1402-732 | WHEEL,FRONT - ALUMINUM (14X6.5) | 1 | $159.95 | |
| 8 | 0423-618 | NUT,LUG MOUNTING-CHROME | 1 | $3.57 | |
| 9 | 1402-392 | TIRE,GOODYEAR MTR 26X9R14NHS(FR) | 1 | $184.95 | |
| 10 | 0402-064 | VALVE STEM(412-50)(SCHRADER) | 1 | $3.44 | |
| 12 | 1402-918 | WHEEL,REAR-ALUMINUM (14X8.0) | 1 | $164.95 | |
| 13 | 1402-393 | TIRE,GOODYEAR MTR-26X11R14NHS(RR) | 1 | $194.95 | |
| 14 | 1402-736 | CAP, CENTER | 1 | $24.77 |
