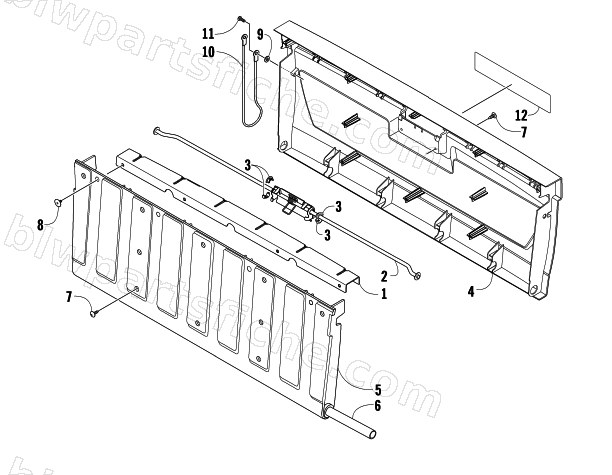

2009 Arctic Cat PROWLER 700 XTX 4X4 LE — TAILGATE ASSEMBLY
2009 PROWLER 700 XTX 4X4 LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2506-205 | TAILGATE ASSEMBLY - BLACK | 1 | $357.95 | |
| 1 | 1506-704 | BRACE,TAILGATE-BLACK | 1 | $58.95 | |
| 2 | 2506-056 | LATCH,TAILGATE-BLACK | 1 | $112.95 | |
| 3 | 1406-706 | BEARING,HANDLE | 1 | $2.06 | |
| 4 | 2406-369 | PANEL,TAILGATE OUTER BLACK | 1 | $180.95 | |
| 5 | 2406-365 | PANEL,TAILGATE INNER | 1 | $140.95 | |
| 6 | 1406-927 | SHAFT,PIVOT-TAILGATE | 1 | $26.95 | |
| 7 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 8 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 9 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 10 | 0487-045 | CABLE,TAILGATE | 1 | $17.87 | |
| 11 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 12 | 1411-539 | DECAL,BOX-"ARCTIC CAT"(PROWLER) | 1 | $33.95 |
