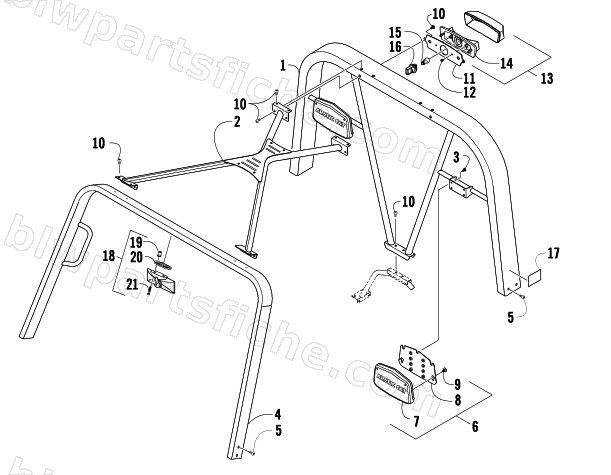

2009 Arctic Cat PROWLER 700 XTX 4X4 LE — CANOPY AND TAILLIGHT ASSEMBLY
2009 PROWLER 700 XTX 4X4 LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1506-680 | CANOPY TUBE, REAR-PAINTED | 1 | $1,435.95 | |
| 2 | 1506-713 | CANOPY SUPPORT-PAINTED | 1 | $1,194.95 | |
| 3 | 0423-361 | SCREW,MACH-TSTRH M6-1.0 X 12 CL8.8 BLK | 1 | $0.95 | |
| 4 | 2516-163 | TUBE,CANOPY-BLACK | 1 | $936.95 | |
| 5 | 0423-817 | SCREW,MACH-TSTRH M8X1.25X20 CL8.8 W/LOCK | 1 | $1.50 | |
| 6 | 4406-989 | PAD,HEADREST | 1 | $26.95 | |
| 7 | 1406-884 | R/B 4406-989 | 1 | $28.95 | |
| 8 | 1506-722 | HEADREST MOUNT-PAINTED-BLACK | 1 | $89.95 | |
| 9 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 10 | 0423-419 | SCREW,MACH-TSTRH-M6-1.0 X 16 BLACK | 1 | $0.95 | |
| 11 | 2406-069 | BRACKET,TAILLIGHT MOUNT-BLACK | 1 | $20.63 | |
| 12 | 0623-301 | SCREW,SELF TAP-HWH 10X1/2 AB Z&Y | 1 | $0.12 | |
| 13 | 0509-022 | TAILLIGHT,ASSY | 1 | $82.95 | |
| 14 | 0509-025 | HOUSING,TAILLIGHT-ASSY | 1 | $66.95 | |
| 15 | 0409-056 | BULB,TAIL LIGHT-3157 | 1 | $19.25 | |
| 16 | 0409-057 | SOCKET,TAIL LIGHT | 1 | $15.11 | |
| 17 | 1411-864 | DECAL,WARNING-CANOPY | 1 | $4.95 | |
| 18 | 1436-314 | KIT,MIRROR-REAR VIEW-PROWLER | 1 | $81.95 | |
| 19 | 0423-896 | NUT, EXPANSION - #10-32 | 1 | $3.16 | |
| 20 | 0423-897 | SPACER,MIRROR | 1 | $5.78 | |
| 21 | 0423-904 | SCREW,MACH FLHD #10-32 x 1-1/2" BLK | 1 | $1.37 |
