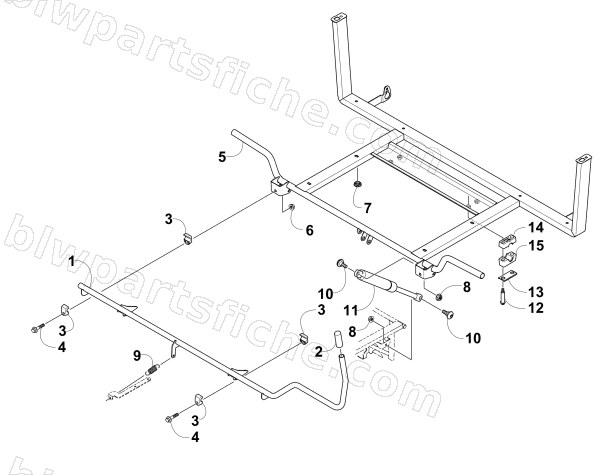

TILT FRAME ASSEMBLY
2009 PROWLER 700 XT 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-919 | LATCH,TILT BOX-BLACK | 1 | $122.95 | |
| 2 | 1406-736 | GRIP, LATCH ROD | 1 | $3.71 | |
| 3 | 1406-674 | BUSHING,PIVOT | 1 | $4.82 | |
| 4 | 8408-840 | SCREW,CAP-HFH M8X1.25X40 CL8.8 Z&Y | 1 | $1.23 | |
| 5 | 2506-197 | FRAME,BOX BLACK | 1 | $479.95 | |
| 6 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 7 | 0423-628 | GROMMET,CARGO BOX | 1 | $1.92 | |
| 8 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 9 | 2416-086 | SPRING,BOX RELEASE | 1 | $5.51 | |
| 10 | 0423-356 | SCREW, SHOULDER-M6-1.0 X 22 RIE BLK | 1 | $0.95 | |
| 11 | 2506-194 | SUPPORT,LIFT | 1 | $69.95 | |
| 12 | 0423-505 | SCREW,SHOULDER-M8-1.25X45 | 1 | $1.78 | |
| 13 | 0405-166 | CAP, HOUSING-BLACK | 1 | $37.95 | |
| 14 | 0405-139 | HOUSING,UPPER | 1 | $6.47 | |
| 15 | 0405-138 | HOUSING,LOWER | 1 | $10.97 |
