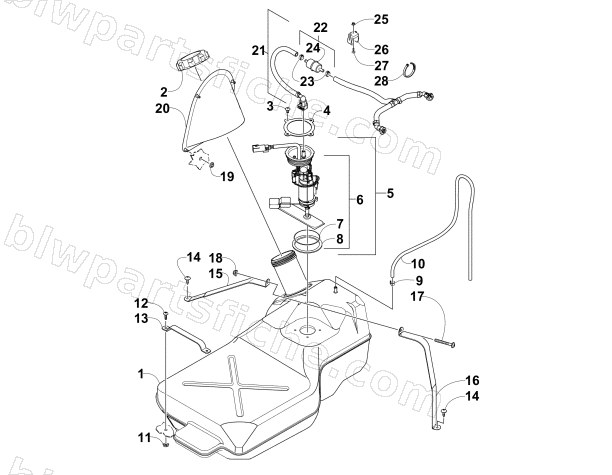

2009 Arctic Cat PROWLER 1000 XTZ 4X4 — GAS TANK ASSEMBLY
2009 PROWLER 1000 XTZ 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0570-203 | R/B 0570-485 | 1 | $498.95 | |
| 2 | 0470-541 | CAP, FUEL - 3.5" | 1 | $46.95 | |
| 3 | 8476-612 | SCREW,MACH-TSTRH M6X1.0X12 Z&Y | 1 | $0.95 | |
| 4 | 0470-606 | MOUNT,FUEL PUMP | 1 | $23.39 | |
| 5 | 0570-272 | PUMP,FUEL-ASSEMBLY (PFA-102) | 1 | $992.95 | |
| 6 | 0570-256 | SENDER,FUEL LEVEL-KIT | 1 | $180.95 | |
| 7 | 0470-614 | SEAL,FUEL PUMP | 1 | $20.63 | |
| 8 | 0470-613 | SEAL,FUEL PUMP | 1 | $2.88 | |
| 9 | 0423-688 | CLAMP,SNAP-10 MM | 1 | $2.33 | |
| 10 | 0410-070 | HOSE,FUEL-25 FT (0419-272 CTL) | 1 | $66.95 | |
| 11 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 12 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 13 | 0470-544 | BRACKET,FUEL TANK MOUNT | 1 | $16.49 | |
| 14 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 15 | 0470-829 | STRAP,FUEL TANK | 1 | $30.95 | |
| 16 | 0470-830 | STRAP,FUEL TANK | 1 | $30.95 | |
| 17 | 8476-650 | SCREW,MACH-TSTRH M6X1.0X50 Z&Y | 1 | $1.50 | |
| 18 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 19 | 0423-357 | NUT, STAMPED-1/4" (SD 25001 SOH) | 1 | $0.95 | |
| 20 | 1406-886 | INSERT,FUEL CAP | 1 | $20.63 | |
| 21 | 0570-298 | HOSE,FUEL-ASSEMBLY | 1 | $187.95 | |
| 22 | 0570-246 | FILTER,FUEL-KIT | 1 | $51.95 | |
| 25 | 8427-502 | NUT,HEX FLG-NYL LOCK M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 26 | 1670-826 | BRKT,FUEL FILTER-F3 | 1 | $6.34 | |
| 27 | 8476-516 | SCREW,MACH-TSTRH M5X0.8X16 Z&Y | 1 | $1.37 | |
| 28 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
