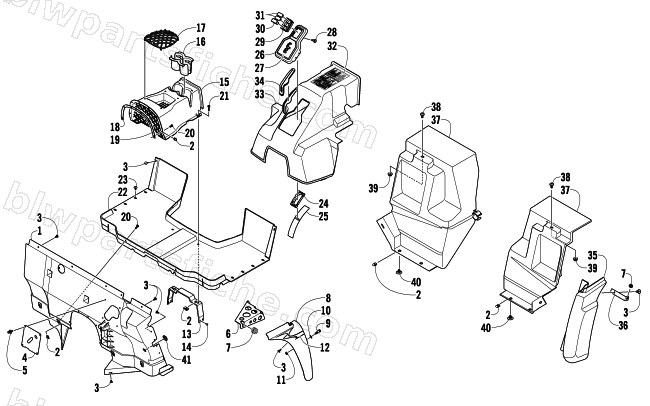

2009 Arctic Cat PROWLER 1000 XTZ 4X4 — CONSOLE AND FLOOR PANEL ASSEMBLY
2009 PROWLER 1000 XTZ 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2516-456 | PANEL,FENDER-INNER-ROUTED (XTZ) | 1 | $212.95 | |
| 2 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 3 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 4 | 2406-635 | PANEL,SPLASH-INNER FENDER | 1 | $10.97 | |
| 5 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 6 | 2506-066 | BRACKET,SUPPORT-RH-PTD BLK | 1 | $27.95 | |
| 6 | 2506-067 | BRACKET,SUPPORT-LH-PTD BLK | 1 | $27.95 | |
| 7 | 0423-447 | GROMMET,GAUGE MOUNT | 1 | $2.19 | |
| 8 | 2506-586 | FENDER,FRONT-RIGHT(BRNT ORG) | 1 | $181.95 | |
| 8 | 2506-587 | FENDER,FRONT-LEFT(BRNT ORG) | 1 | $187.95 | |
| 8 | 2516-184 | FENDER,FRONT-RH-APPLE GREEN METALLIC | 1 | $228.95 | |
| 8 | 2516-185 | FENDER,FRONT-LH-APPLE GREEN METALLIC | 1 | $228.95 | |
| 9 | 0623-855 | SCREW, HEX,DOME HEAD SHOULDER-1/4-20X.50 | 1 | $13.73 | |
| 10 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 11 | 1623-066 | NUT,FLANGE-1/4-20 TOPLOCK-GD 5 Z&Y | 1 | $0.95 | |
| 12 | 1411-994 | DECAL,GRAPHIC-FR LWR FENDER RH | 1 | $26.95 | |
| 12 | 1411-995 | DECAL,GRAPHIC-FR LWR FENDER LH | 1 | $26.95 | |
| 12 | 2411-062 | DECAL,GRAPHIC-FRONT LOWER FENDER-RH (AGM | 1 | $28.95 | |
| 12 | 2411-063 | DECAL,GRAPHIC-FRT LOWER FENDER-LH (AGM | 1 | $26.95 | |
| 13 | 2516-313 | BRACKET,FLOOR SUPPORT-PAINTED | 1 | $42.95 | |
| 14 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 15 | 2416-081 | TUNNEL,CENTER | 1 | $74.95 | |
| 16 | 2416-109 | GROMMET,CUPHOLDER | 1 | $37.95 | |
| 17 | 2416-111 | NET,STORAGE BOX | 1 | $33.95 | |
| 18 | 0417-019 | FOAM,TUNNEL-LH | 1 | $12.35 | |
| 19 | 0417-018 | FOAM,TUNNEL-RH | 1 | $12.35 | |
| 20 | 8468-620 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 BLK | 1 | $0.68 | |
| 21 | 8468-670 | SCREW,MACH-TSPNH M6X1.0X70 CL8.8 BLK | 1 | $3.02 | |
| 22 | 2416-085 | R/B 5406-460 | 1 | $539.95 | |
| 23 | 0423-545 | SCREW,BODY-SELF TAP #12 X 3/4 A Z&B | 1 | $1.09 | |
| 24 | 1402-793 | GATE,SHIFT SLIDE | 1 | $8.21 | |
| 25 | 1402-794 | SHIFT SLIDE | 1 | $13.73 | |
| 26 | 1502-520 | GATE,SHIFT-W/DECAL | 1 | $58.95 | |
| 27 | 1411-985 | DECAL,SHIFT GATE | 1 | $20.63 | |
| 28 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 29 | 0409-069 | PANEL,SWITCH MOUNT | 1 | $20.63 | |
| 30 | 0409-071 | SWITCH,REVERSE OVERRIDE | 1 | $47.95 | |
| 31 | 0409-070 | PLUG,SWITCH HOLE | 1 | $3.57 | |
| 32 | 1411-126 | DECAL,WARNING-CONSOLE | 1 | $26.95 | |
| 33 | 4406-717 | CONSOLE,CENTER-SHIFT,PARK BRAKE,&TUNNEL | 1 | $341.95 | |
| 34 | 2406-960 | BOOT,PARK BRAKE | 1 | $30.95 | |
| 35 | 2516-008 | FENDER,REAR LOWER-RH-BURNT ORG-PAINTED | 1 | $129.95 | |
| 35 | 2516-009 | FENDER,REAR LOWER-LH-BURNT ORG-PAINTED | 1 | $129.95 | |
| 35 | 2516-196 | FENDER,RR LWR-RH-A GREEN METALLIC (PTD) | 1 | $158.95 | |
| 35 | 2516-197 | FENDER,RR LWR-LH-A GREEN METALLIC (PTD) | 1 | $158.95 | |
| 36 | 2516-326 | BRACKET,LOWER FENDER SUPPORT-BLACK | 1 | $13.73 | |
| 37 | 2416-018 | PANEL,SPLASH-REAR-RH | 1 | $114.95 | |
| 37 | 2416-019 | PANEL,SPLASH-REAR-LH | 1 | $114.95 | |
| 39 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 40 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 |
