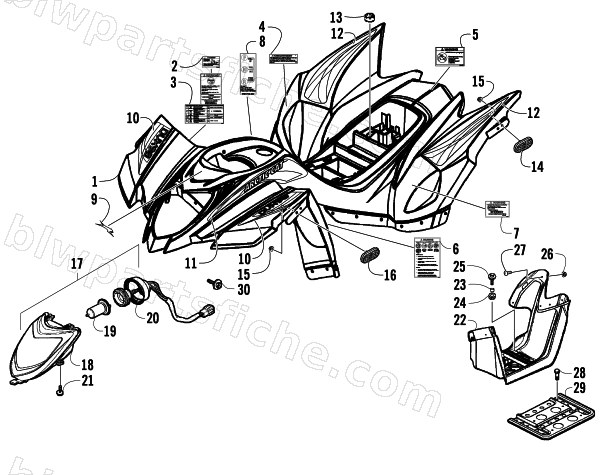

BODY PANEL AND HEADLIGHT ASSEMBLY

2009 90 DVX

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	3305-834	PANEL,BODY-MAIN WHITE	1	$288.95
2	0411-836	DECAL,WARNING HILL (MINI)	1	$82.95
3	2411-136	DECAL,WARNING-RVS/PRE-RIDE/Y12	1	$17.87
4	1411-577	DECAL,WARNING-OFF ROAD ONLY	1	$50.95
5	1411-809	DECAL,WARNING-PASSENGER	1	$3.30
6	1411-932	DECAL,WARNING-GENERAL	1	$12.35
7	1411-938	DECAL,WARNING-TIRE/LOAD (MINI)	1	$12.35
8	2411-052	DECAL,SHIFT	1	$17.87
9	8611-267	DECAL,AIRCAT-DYMOFLEX CHROME	1	$20.63
10	1411-968	DECAL,FR FENDER-RH (DVX 90)	1	$58.95
10	1411-969	DECAL,FR FENDER-LH (DVX 90)	1	$58.95
11	1411-966	DECAL,TANK-RH (DVX 90)	1	$41.95
11	1411-967	DECAL,TANK-LH (DVX 90)	1	$148.95
12	1411-970	DECAL,RR FENDER-RH (DVX)	1	$58.95
12	1411-971	DECAL,RR FENDER-LH (DVX)	1	$58.95
13	3303-232	RUBBER REAR FENDER	1	$1.92
14	3313-360	REFLECTOR,REAR (OVAL)	1	$13.73
15	3304-774	NUT FLANGE 5MM(G)	1	$0.81
16	3313-359	REFLECTOR,FRONT (OVAL)	1	$13.73
17	3304-280	LIGHT ASSY R HEAD	1	$203.95
18	3304-281	UNIT HEAD LIGHT	1	$180.95
19	3303-846	BULB HEAD LIGHT	1	$42.95
20	3304-282	SOCKET COMP	1	$37.95
21	3304-650	SCREW TAPPING 5*16 (CIRCLE HEAD)	1	$1.50
22	3306-144	MUDGUARD ASSY R FLOOR	1	$82.95
22	3306-145	MUDGUARD ASSY L FLOOR	1	$82.95
23	3303-233	COLLAR FLOOR	1	$2.33
24	3303-227	RUBBER WIND SCREEN	1	$1.92
25	3304-586	BOLT WASHER 6*20	1	$1.23
26	3304-431	NUT LOCK	1	$1.23
27	3305-703	SCREW SPECIAL 6*20	1	$1.78
28	3304-543	BOLT FLANGE 8*16	1	$1.50
29	3304-494	FOOTREST-RH	1	$37.95
29	3304-495	FOOTREST-LH	1	$37.95
30	3304-587	BOLT WASHER 6*16	1	$1.23
