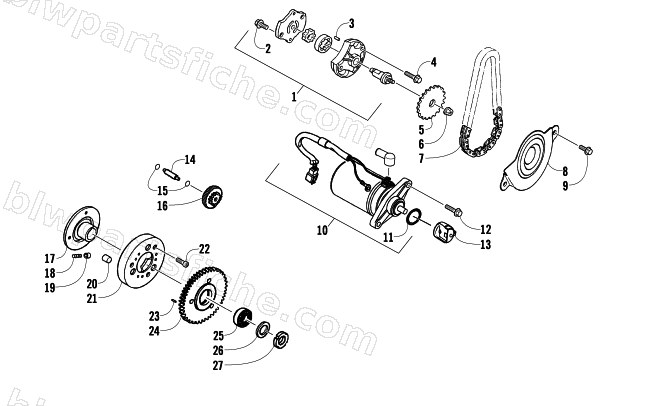

STARTER MOTOR AND OIL PUMP ASSEMBLY
2009 90 2X4 UTILITY
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-045 | OIL PUMP ASSY | 1 | $64.95 | |
| 2 | 3304-426 | SCREW PAN 3*10 | 1 | $0.81 | |
| 3 | 3304-144 | PIN DOWEL 4*6.5 | 1 | $1.37 | |
| 4 | 3303-384 | BOLT FLANGE SH 6*25 | 1 | $0.81 | |
| 5 | 3303-046 | SPRKT OIL PUMP DRIVEN **9000 C.2000.04 | 1 | $12.35 | |
| 6 | 3303-331 | NUT FLANGE 6MM | 1 | $0.55 | |
| 7 | 3303-047 | CHAIN OIL PUMP | 1 | $33.95 | |
| 8 | 3303-051 | SEPARATOR OIL **9000 C.98.11.16. | 1 | $3.57 | |
| 9 | 3303-381 | BOLT FLANGE SH 6*12 | 1 | $0.81 | |
| 10 | 3304-639 | MOTOR ASSY START | 1 | $138.95 | |
| 11 | 3303-604 | O-RING | 1 | $1.78 | |
| 13 | 3303-130 | HOLDER COMP STARTER REDUCTION **9000 | 1 | $20.63 | |
| 14 | 3303-110 | SHAFT START REDUCTION **9000 C.97.09.18 | 1 | $20.63 | |
| 15 | 3303-282 | WASHER 24*8.5 **0000 C.97.07.26. | 1 | $1.23 | |
| 16 | 3303-109 | GEAR COMP ST REDUCTION **9000 C.97.09.18 | 1 | $69.95 | |
| 17 | 3303-115 | BOSS STARTER CLUTCH **9000 C.97.09.18. | 1 | $58.95 | |
| 18 | 3303-113 | SPG ROLLER ST CLUTCH **0000 C.97.09.18 | 1 | $1.64 | |
| 19 | 3303-114 | STARTING ROLLER SPG **9000 C.97.09.18. | 1 | $1.92 | |
| 20 | 3303-293 | ROLLER 10.2*11.5 **9000 C.97.07.26. | 1 | $3.30 | |
| 21 | 3303-112 | OUTER COMP ST CLUTCH **9000 C.97.09.18. | 1 | $74.95 | |
| 22 | 3303-396 | SOCKET BOLT 6*12 | 1 | $1.95 | |
| 23 | 3303-395 | ROLLER 6*10 | 1 | $1.78 | |
| 24 | 3303-111 | GEAR COMP STARTER **(1) C.97.11.04. | 1 | $60.95 | |
| 25 | 3303-292 | BRG BALL RADIAL 6005-2NG/25*47*12 | 1 | $33.95 | |
| 26 | 3303-285 | CIR CLIP B 1I 14 | 1 | $4.40 | |
| 27 | 3303-258 | NUT SPECIAL 24MM **9000 C.97.07.26. | 1 | $3.02 |
