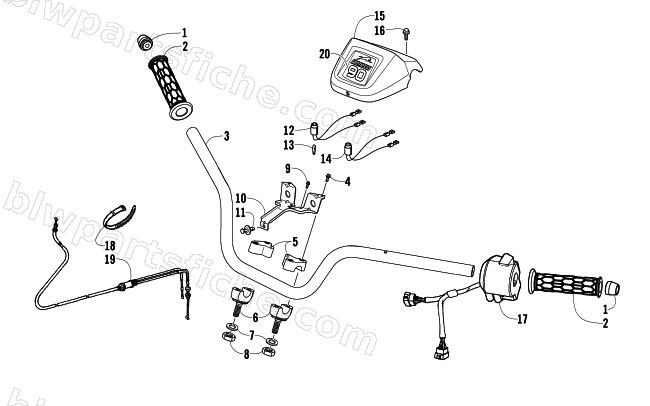

2009 Arctic Cat 90 2X4 UTILITY — HANDLEBAR AND CONTROL ASSEMBLY
2009 90 2X4 UTILITY
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-196 | END STRG HANDLE **9110 C.97.02.01 | 1 | $2.33 | |
| 2 | 3305-905 | GRIP,HANDLE-4040 SPEC | 1 | $13.73 | |
| 3 | 3303-434 | HANDLE PIPE STRG | 1 | $54.95 | |
| 4 | 3303-398 | R/B 3307-113 | 1 | $1.95 | |
| 5 | 3303-197 | HOLDER R HANDLE PIPE | 1 | $10.97 | |
| 5 | 3303-198 | HOLDER L HANDLE PIPE | 1 | $10.97 | |
| 6 | 3303-199 | HOLDER UNDER HANDLE PIPE | 1 | $17.87 | |
| 7 | 3304-136 | WASHER PLAIN 10MM | 1 | $0.81 | |
| 8 | 3305-517 | NUT U 10MM (BLACK) | 1 | $2.61 | |
| 9 | 3304-553 | BOLT FLANGE 6*12 | 1 | $0.81 | |
| 10 | 3304-506 | BRACKET,HANDLEBAR COVER | 1 | $16.49 | |
| 11 | 3304-552 | CLIP MUDGUARD | 1 | $1.64 | |
| 12 | 3305-830 | LIGHT,INDICATOR-NEUTRAL | 1 | $30.95 | |
| 13 | 3305-867 | BULB,INDICATOR | 1 | $14.95 | |
| 14 | 3305-831 | LIGHT,INDICATOR-REVERSE | 1 | $30.95 | |
| 15 | 3304-501 | POD-MARSH GREEN | 1 | $33.95 | |
| 16 | 3304-029 | BOLT WASH 5*16 | 1 | $0.81 | |
| 17 | 3303-424 | SW ASSY LH HANDLE COMP | 1 | $112.95 | |
| 18 | 3303-839 | BAND WIRE HARNESS B1 | 1 | $2.33 | |
| 19 | 1502-096 | THROTTLE CABLE/CAP-ASSEMBLY | 1 | $50.95 | |
| 20 | 1411-618 | DECAL,POD-90 UTILITY | 1 | $30.95 |
