2009 Arctic Cat 700 H1 EFI 4X4 AUTOMATIC MUD PRO — WINCH ASSEMBLY
2009 700 H1 EFI 4X4 AUTOMATIC MUD PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.

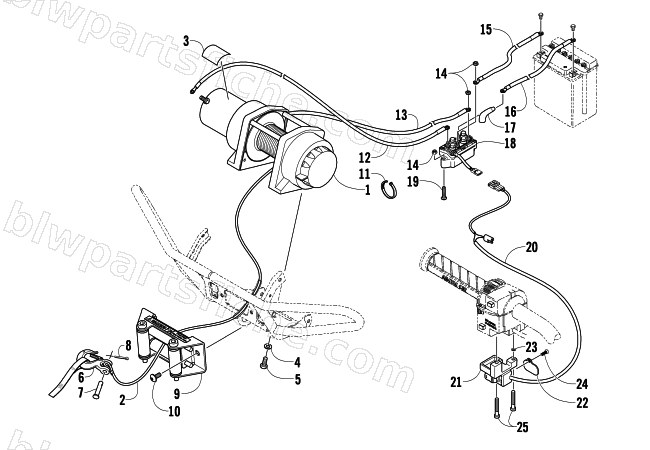

| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1441-704 | WINCH,ARCTIC/WARN-3.0 (COMPOSITE END) | 1 | $831.95 | |
| 2 | 0441-061 | CABLE, WIRE ROPE - 15236 | 1 | $113.95 | |
| 3 | 1411-826 | DECAL,WINCH-ARCTIC CAT/WARN(3.0 RT/XT) | 1 | $1.95 | |
| 4 | 8051-246 | WASHER,SPR LOCK-5/16 .314X.593X.097 Z&C | 1 | $0.68 | |
| 5 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 6 | 0541-760 | HOOK,WINCH W/A.C. STRAP AND WARNING TAG | 1 | $30.95 | |
| 7 | 1441-130 | PIN,CLEVIS | 1 | $3.16 | |
| 8 | 1441-129 | COTTER PIN | 1 | $2.61 | |
| 9 | 0441-403 | FAIRLEAD,ROLLER-1600 (B) | 1 | $35.95 | |
| 10 | 8468-820 | SCREW,MACH-TSPNH M8X1.25X20 CL8.8 BLK | 1 | $1.50 | |
| 11 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 12 | 0445-068 | CABLE, WINCH-SOLENOID (7" YEL #6) | 1 | $10.97 | |
| 13 | 0445-069 | CABLE,WINCH-SOLENOID (10" BLU #6) | 1 | $13.73 | |
| 14 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 15 | 1441-112 | CABLE,BATTERY-SOLENOID (75" BLK #6) | 1 | $64.95 | |
| 16 | 1441-113 | CABLE,BATTERY-SOLENOID (75" RED #6) | 1 | $55.95 | |
| 17 | 0441-060 | BOOT, TERMINAL | 1 | $2.61 | |
| 18 | 0409-066 | R/B 0409-246 | 1 | $139.95 | |
| 19 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 20 | 0409-087 | SWITCH,WINCH-HARNESS ASSY | 1 | $54.95 | |
| 21 | 0409-034 | HOLDER, SWITCH-WINCH (500 A) | 1 | $10.97 | |
| 22 | 5506-053 | COVER,WINCH SWITCH-BLACK | 1 | $16.49 | |
| 23 | 0423-593 | WASHER,FLAT-Z&B (11MM ODX 5.5MM IDX 1.8) | 1 | $0.95 | |
| 24 | 0423-382 | SCREW, COVER-WINCH SWITCH | 1 | $0.68 | |
| 25 | 8464-560 | SCREW,MACH-PHTRH M5-.8X60 Z&BLK | 1 | $12.35 |
