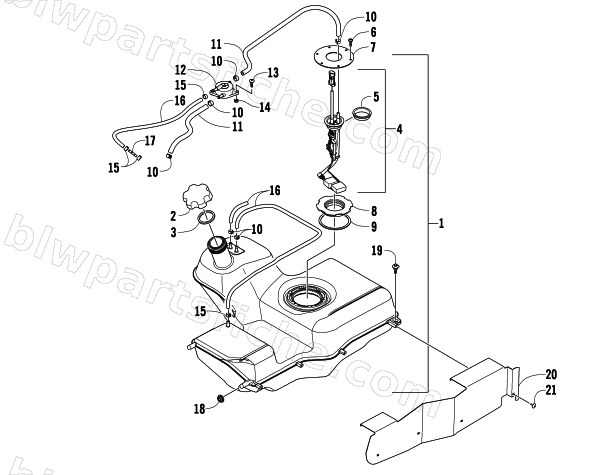

2009 Arctic Cat 650 TBX — GAS TANK ASSEMBLY
2009 650 TBX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0570-300 | TANK,FUEL-ASSEMBLY (09 TBX) | 1 | $591.95 | |
| 2 | 0470-438 | CAP,FUEL TANK | 1 | $13.73 | |
| 4 | 0570-254 | SENDER,FUEL LEVEL-KIT | 1 | $174.95 | |
| 6 | 0423-898 | SCREW,TSPH-THRD FORM M5X0.8X20MM SEMS | 1 | $0.54 | |
| 7 | 0470-848 | MOUNT,LSA-ASSY | 1 | $50.95 | |
| 8 | 0470-847 | ADAPTER,LSA-MTG | 1 | $10.97 | |
| 9 | 0470-838 | SEAL,FUEL-PUMP | 1 | $3.16 | |
| 10 | 0423-688 | CLAMP,SNAP-10 MM | 1 | $2.33 | |
| 11 | 0410-070 | HOSE,FUEL-25 FT (0419-272 CTL) | 1 | $66.95 | |
| 12 | 0470-758 | PUMP,FUEL | 1 | $69.95 | |
| 13 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 14 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 15 | 0423-689 | CLAMP,SNAP-12 MM | 1 | $2.06 | |
| 16 | 0410-143 | HOSE,FUEL-1/4" 25' (0410-141 CTL) | 1 | $217.95 | |
| 17 | 0470-702 | HOSE BARB,INTAKE MANIFOLD | 1 | $2.88 | |
| 18 | 0423-460 | GROMMET, FUEL TANK | 1 | $4.26 | |
| 19 | 0423-732 | SCREW,FUEL TANK | 1 | $2.61 | |
| 20 | 0470-715 | SHIELD,FUEL TANK | 1 | $64.95 | |
| 21 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 |
