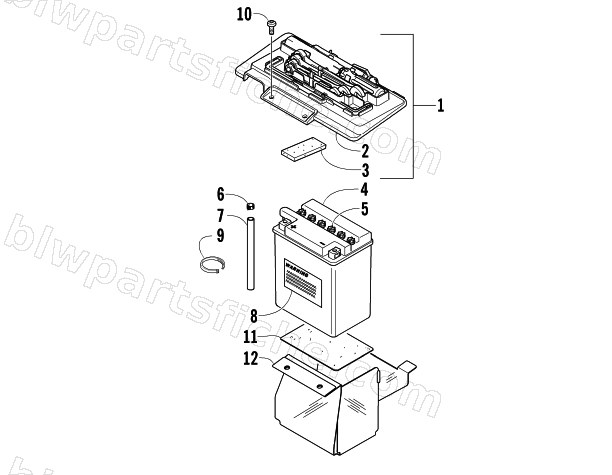

2009 Arctic Cat 650 TBX — BATTERY ASSEMBLY
2009 650 TBX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0444-122 | KIT, TOOL | 1 | $24.77 | |
| 1 | 5993-040 | TRAY,TOOL-ASSY | 1 | $100.95 | |
| 2 | 4406-136 | COVER,BATTERY/TOOL TRAY | 1 | $69.95 | |
| 3 | 0406-288 | PAD,BATTERY-TOP FR | 1 | $6.34 | |
| 4 | 0745-045 | BATTERY PKG (0645-165) | 1 | $124.95 | |
| 5 | 0645-045 | BATTERY CAP | 1 | $1.92 | |
| 6 | 0645-152 | CLAMP, HOSE-BATTERY VENT | 1 | $2.47 | |
| 7 | 0645-263 | HOSE, BATTERY VENT-550MM | 1 | $3.44 | |
| 8 | 0645-151 | LABEL, WARNING-BATTERY | 1 | $10.97 | |
| 9 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 10 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 11 | 0406-380 | PAD,BATTERY | 1 | $4.26 | |
| 12 | 1506-587 | BOX,BATTERY-BLACK | 1 | $78.95 |
