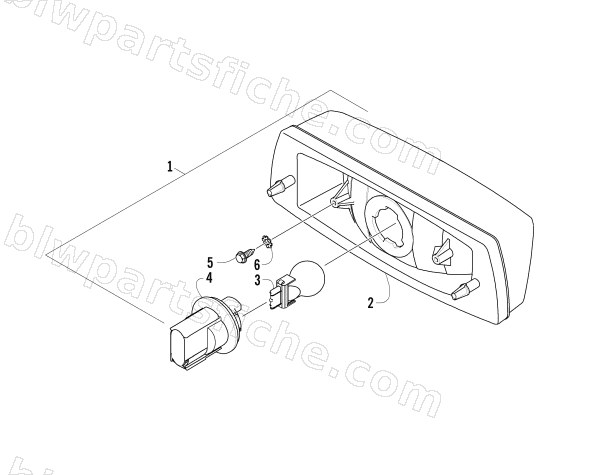

2009 Arctic Cat 550 TRV — TAILLIGHT ASSEMBLY
2009 550 TRV
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0509-022 | TAILLIGHT,ASSY | 1 | $82.95 | |
| 2 | 0509-025 | HOUSING,TAILLIGHT-ASSY | 1 | $66.95 | |
| 3 | 0409-056 | BULB,TAIL LIGHT-3157 | 1 | $19.25 | |
| 4 | 0409-057 | SOCKET,TAIL LIGHT | 1 | $15.11 | |
| 5 | 0623-301 | SCREW,SELF TAP-HWH 10X1/2 AB Z&Y | 1 | $0.12 | |
| 6 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 |
