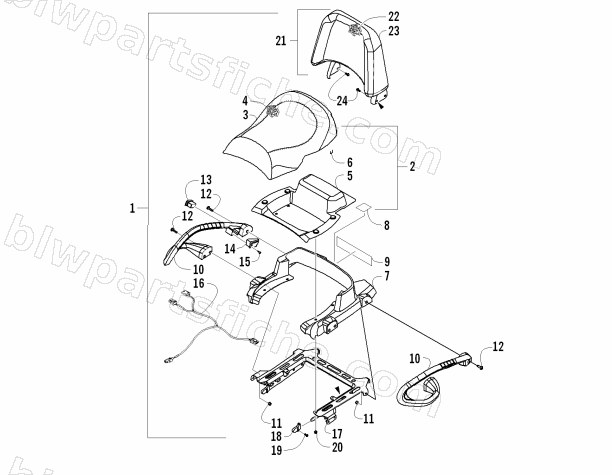

PASSENGER SEAT AND BACKREST ASSEMBLY
2009 550 TRV LE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-938 | SEAT,AUX-ASSY (NB HEATED HG) | 1 | $1,138.95 | |
| 2 | 2506-940 | SEAT, AUX-SUB ASSY | 1 | $279.95 | |
| 3 | 2506-944 | COVER,SEAT-PASSENGER (LOWPRO) | 1 | $122.95 | |
| 4 | 2506-942 | FOAM,SEAT-PASSENGER (LOWPRO) | 1 | $136.95 | |
| 5 | 2406-110 | BASE,SEAT-INNER | 1 | $58.95 | |
| 6 | 0624-263 | STAPLE,S.S. 3/8"PKG OF 1,250 ARROW | 1 | $133.95 | |
| 7 | 2406-044 | BASE,SEAT-FASCIA | 1 | $145.95 | |
| 8 | 1411-251 | DECAL,WARNING SEAT-PASSENGER | 1 | $12.35 | |
| 9 | 0411-814 | DECAL,"ARCTIC CAT"-WHT | 1 | $50.95 | |
| 10 | 2406-744 | HANDHOLD,RH-HEATED | 1 | $156.95 | |
| 10 | 2406-745 | HANDHOLD,LH-HEATED | 1 | $156.95 | |
| 11 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 12 | 8468-830 | SCREW,MACH-TSPNH M8X1.25X30 CL8.8 BLK | 1 | $9.59 | |
| 13 | 0409-126 | SWITCH,WARMER-PASSENGER (09 CRUISER) | 1 | $79.95 | |
| 14 | 2416-042 | COVER,SWITCH-HANDHOLD (TRV) | 1 | $17.87 | |
| 15 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 16 | 0486-318 | HARNESS,WARMER-SEAT BASE (09 CRUISER) | 1 | $37.95 | |
| 17 | 2516-040 | BRACKET,SEAT SUPPORT-ASSEMBLY | 1 | $196.95 | |
| 18 | 2406-895 | END CAP,SEAT SUPPORT | 1 | $5.92 | |
| 19 | 0423-538 | SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z&B | 1 | $0.68 | |
| 20 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 21 | 2516-020 | BACKREST - ASSEMBLY | 1 | $350.95 | |
| 22 | 2516-018 | FOAM,BACKREST | 1 | $169.95 | |
| 23 | 2516-141 | COVER,BACKREST | 1 | $118.95 | |
| 24 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 |
