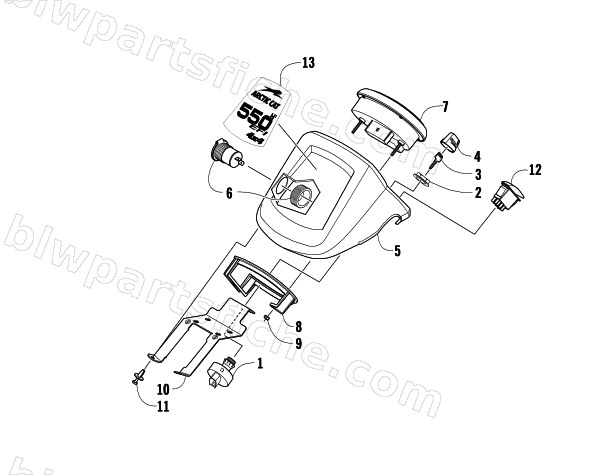

2009 Arctic Cat 550 H1 EFI 4X4 AUTOMATIC LE — INSTRUMENT POD ASSEMBLY
2009 550 H1 EFI 4X4 AUTOMATIC LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0430-090 | SWITCH,IGNITION-LIGHTS (09 ATV) | 1 | $66.95 | |
| 2 | 0430-050 | NUT,FLANGE-KEYSWITCH | 1 | $1.92 | |
| 3 | 0430-042 | KEY,IGNITION SERIES-Y (LH BLANK) | 1 | $5.92 | |
| 3 | 0430-043 | KEY,IGNITION SERIES-Z (RH BLANK) | 1 | $11.95 | |
| 4 | 0430-054 | COVER,KEY | 1 | $15.11 | |
| 5 | 0505-585 | POD,INSTRUMENT-BLACK METALLIC-TRV | 1 | $100.95 | |
| 5 | 0405-310 | POD,INSTRUMENT-RED | 1 | $100.95 | |
| 5 | 0405-312 | POD,INSTRUMENT-LIME GREEN | 1 | $100.95 | |
| 6 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 7 | 0520-052 | GAUGE,A/D (09 550-H1 FIS) | 1 | $525.95 | |
| 7 | 0520-040 | GAUGE,LCD (09 550-H1 FIS) | 1 | $525.95 | |
| 8 | 0420-065 | CLAMP,PLASTIC-LCD GAUGE | 1 | $4.40 | |
| 9 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 10 | 2506-470 | BRKT,MTG GAUGE-PTD | 1 | $26.95 | |
| 11 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 | |
| 12 | 0409-120 | SWITCH,DIFF-LOCK PM | 1 | $47.95 | |
| 13 | 1411-875 | DECAL,GRAPHIC-POD | 1 | $17.87 | |
| 14 | 0409-121 | SWITCH,WARMER-PM (09 CRUISER) | 1 | $82.95 |
