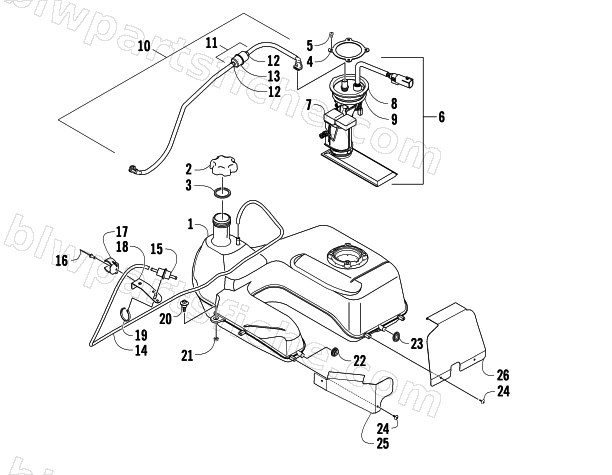

2009 Arctic Cat 550 H1 EFI 4X4 AUTOMATIC LE — GAS TANK ASSEMBLY
2009 550 H1 EFI 4X4 AUTOMATIC LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0570-159 | TANK,FUEL-ASSEMBLY (SP PURCH ASSY) | 1 | $509.95 | |
| 2 | 0470-438 | CAP,FUEL TANK | 1 | $13.73 | |
| 4 | 0470-606 | MOUNT,FUEL PUMP | 1 | $23.39 | |
| 5 | 8476-612 | SCREW,MACH-TSTRH M6X1.0X12 Z&Y | 1 | $0.95 | |
| 6 | 0570-271 | PUMP,FUEL-ASSEMBLY | 1 | $799.95 | |
| 7 | 0570-252 | SENDER,FUEL LEVEL-KIT | 1 | $180.95 | |
| 10 | 0570-243 | HOSE,FUEL-ASSEMBLY | 1 | $118.95 | |
| 11 | 0570-246 | FILTER,FUEL-KIT | 1 | $51.95 | |
| 14 | 0410-070 | HOSE,FUEL-25 FT (0419-272 CTL) | 1 | $66.95 | |
| 15 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 16 | 8060-628 | RIVET,BLIND-DH AA66 BLK | 1 | $1.23 | |
| 17 | 1670-826 | BRKT,FUEL FILTER-F3 | 1 | $6.34 | |
| 18 | 0470-827 | BRACKET,FUEL FILTER | 1 | $8.21 | |
| 19 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 20 | 0423-732 | SCREW,FUEL TANK | 1 | $2.61 | |
| 21 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 22 | 0423-460 | GROMMET, FUEL TANK | 1 | $4.26 | |
| 23 | 0423-806 | GROMMET, FUEL TANK | 1 | $16.49 | |
| 24 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 25 | 0470-709 | SHIELD,FUEL TANK-FRONT | 1 | $20.63 | |
| 26 | 0470-710 | SHIELD,FUEL TANK-REAR | 1 | $23.39 |
