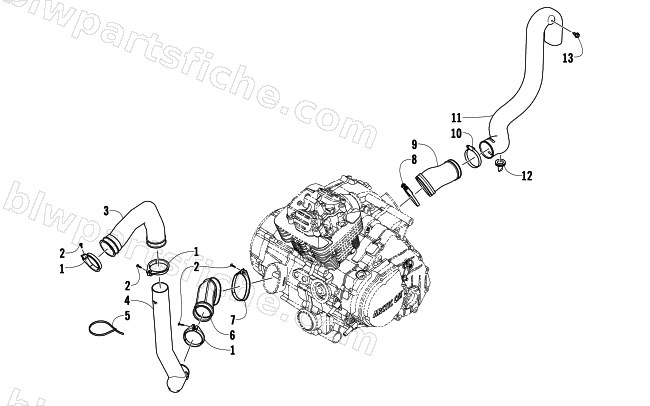

CASE/BELT COOLING ASSEMBLY
2009 400 TRV
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-551 | CLAMP,PLASTIC-SCREW-ROUND(63 DIAx13) | 1 | $2.33 | |
| 2 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 3 | 0413-092 | BOOT,AIR IN-BELT COOLING | 1 | $58.95 | |
| 4 | 0513-027 | DUCT,AIR IN-ROUTED | 1 | $56.95 | |
| 5 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 6 | 0413-222 | BOOT,DUCT AIR IN | 1 | $27.95 | |
| 7 | 0423-550 | CLAMP,PLASTIC-SCREW-OVAL(9x64x13) | 1 | $2.75 | |
| 8 | 0423-730 | CLAMP,SCREW-OVAL | 1 | $20.63 | |
| 9 | 0413-060 | BOOT,BELT COOLING | 1 | $45.95 | |
| 10 | 0423-019 | CLAMP,HOSE-WORM (NORMA 50-70) | 1 | $2.47 | |
| 11 | 0413-106 | DUCT,BELT COOLING-REAR | 1 | $58.95 | |
| 12 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 13 | 0623-301 | SCREW,SELF TAP-HWH 10X1/2 AB Z&Y | 1 | $0.12 |
