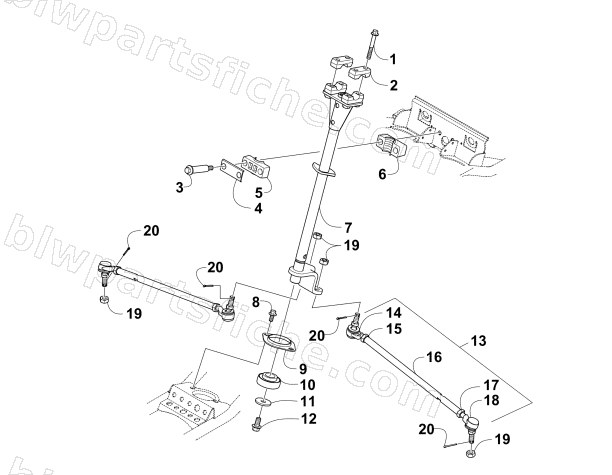

STEERING ASSEMBLY
2009 366 4X4 AUTOMATIC
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8408-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 Z&Y | 1 | $1.37 | |
| 2 | 0405-035 | CAP,STEERING ADJUSTER | 1 | $17.87 | |
| 3 | 0423-505 | SCREW,SHOULDER-M8-1.25X45 | 1 | $1.78 | |
| 4 | 0405-166 | CAP, HOUSING-BLACK | 1 | $37.95 | |
| 5 | 3323-052 | HOUSING,UPPER | 1 | $17.95 | |
| 6 | 3323-051 | HOUSING,LOWER | 1 | $17.95 | |
| 7 | 3313-056 | POST,STEERING-BLACK | 1 | $144.95 | |
| 8 | 3304-565 | BOLT FLANGE 8*20 | 1 | $1.50 | |
| 9 | 0602-233 | FLANGE,BRG-TWO MTG HOLE | 1 | $4.26 | |
| 10 | 0405-052 | BEARING, (ATV-BB-4) LOW SPEED-STEERING | 1 | $49.95 | |
| 11 | 0423-073 | WASHER,FLAT-1.38 OD X .413 ID X.134 TH | 1 | $1.50 | |
| 12 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 13 | 3313-102 | TIE ROD ASSY | 1 | $90.95 | |
| 19 | 0423-157 | NUT, TOP-LOCK | 1 | $0.95 | |
| 20 | 3303-621 | PIN SPLIT 2.5*20 | 1 | $1.37 |
