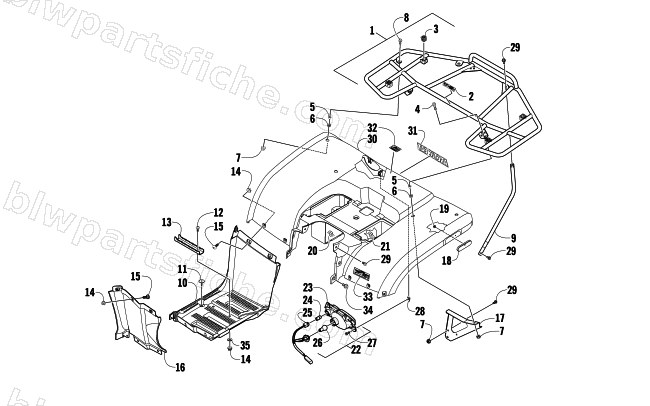

2009 Arctic Cat 366 4X4 AUTOMATIC — REAR BODY, RACK, AND TAILLIGHT ASSEMBLY
2009 366 4X4 AUTOMATIC
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3313-373 | RACK,REAR-ASSEMBLY | 1 | $324.95 | |
| 2 | 1411-682 | DECAL,WARNING RACK (150LB) | 1 | $17.87 | |
| 3 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 4 | 8410-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 RIE BLK | 1 | $1.09 | |
| 5 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 6 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 7 | 3304-668 | NUT FLANGE 8MM | 1 | $0.81 | |
| 8 | 3313-522 | BOLT,M8*25 | 1 | $1.78 | |
| 9 | 3313-449 | TUBE,MOUNT-RACK-REAR-PAINTED | 1 | $30.95 | |
| 10 | 3313-194 | FOOTWELL,REAR-RH | 1 | $76.95 | |
| 10 | 3313-195 | R/B 3313-763 | 1 | $76.95 | |
| 11 | 0423-545 | SCREW,BODY-SELF TAP #12 X 3/4 A Z&B | 1 | $1.09 | |
| 12 | 3304-586 | BOLT WASHER 6*20 | 1 | $1.23 | |
| 13 | 5506-497 | FOOTPEG,BLACK | 1 | $16.49 | |
| 14 | 3304-431 | NUT LOCK | 1 | $1.23 | |
| 15 | 3305-703 | SCREW SPECIAL 6*20 | 1 | $1.78 | |
| 16 | 3313-462 | R/B 3313-760 | 1 | $51.95 | |
| 16 | 3313-463 | FOOTWELL,LH-FRONT | 1 | $47.95 | |
| 17 | 3313-352 | BRACKET,RACK MOUNT-PAINTED BLACK(RH) | 1 | $13.73 | |
| 17 | 3313-353 | BRACKET,RACK MOUNT-PAINTED BLACK(LH) | 1 | $13.73 | |
| 18 | 3313-360 | REFLECTOR,REAR (OVAL) | 1 | $13.73 | |
| 19 | 3304-774 | NUT FLANGE 5MM(G) | 1 | $0.81 | |
| 20 | 3313-362 | SHIELD,RH | 1 | $10.97 | |
| 21 | 3313-363 | SHIELD,LH | 1 | $10.97 | |
| 22 | 3313-382 | ASSY,TAILLIGHT - RH (SAE) | 1 | $102.95 | |
| 22 | 3313-383 | ASSY,TAILLIGHT - LH (SAE) | 1 | $102.95 | |
| 24 | 3313-508 | BULB,BACKUP(R5W -12V 5W) (CLEAR) | 1 | $6.75 | |
| 25 | 3313-499 | ASSY, SOCKET-TAILLIGHT (SAE) | 1 | $47.95 | |
| 26 | 3303-849 | BULB TAIL & STOP 12V21W/5W | 1 | $12.35 | |
| 27 | 3304-029 | BOLT WASH 5*16 | 1 | $0.81 | |
| 28 | 3304-061 | NUT CLIP 5MM | 1 | $2.33 | |
| 29 | 3304-543 | BOLT FLANGE 8*16 | 1 | $1.50 | |
| 30 | 3313-726 | PANEL,FENDER-REAR-GREEN (ASSY) | 1 | $371.95 | |
| 30 | 3313-725 | PANEL,FENDER-REAR-RED (ASSY) | 1 | $360.95 | |
| 31 | 1411-725 | DECAL,GRAPHIC-REAR (BLACK) | 1 | $4.95 | |
| 32 | 1411-809 | DECAL,WARNING-PASSENGER | 1 | $3.30 | |
| 33 | 1411-893 | DECAL,TIRE PRESSURE | 1 | $26.95 | |
| 34 | 3305-783 | BOLT WASHER 8*16 | 1 | $3.02 | |
| 35 | 3305-852 | WASHER,PLAIN 6MM | 1 | $0.81 |
