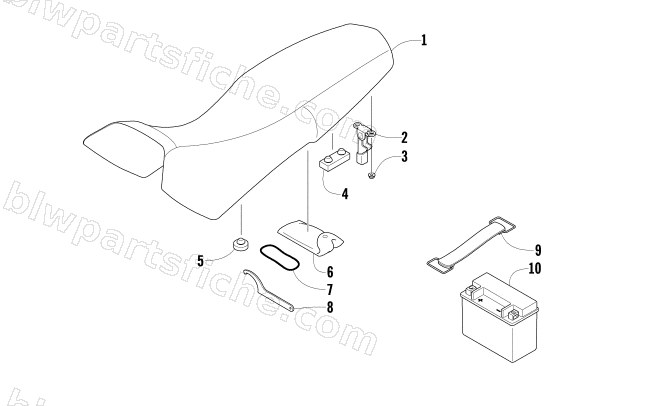

2009 Arctic Cat 300 DVX 2X4 AUTO SPORT — SEAT, BATTERY, AND TOOL KIT ASSEMBLIES
2009 300 DVX 2X4 AUTO SPORT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3304-391 | SEAT ASSY | 1 | $288.95 | |
| 2 | 3304-392 | HOOK ASSY SEAT LOCK | 1 | $26.95 | |
| 3 | 3303-331 | NUT FLANGE 6MM | 1 | $0.55 | |
| 4 | 3306-458 | BUMPER,SEAT | 1 | $2.61 | |
| 5 | 3306-470 | RUBBER SEAT CUSHION | 1 | $1.92 | |
| 6 | 3304-400 | TOOL SET | 1 | $47.95 | |
| 7 | 3303-242 | BAND TOOL SET | 1 | $1.64 | |
| 8 | 1441-797 | WRENCH,SPANNER | 1 | $0.00 | |
| 9 | 3304-434 | BAND BATTERY | 1 | $13.73 | |
| 10 | 3304-275 | BATTERY YTX12-BS | 1 | $163.95 |
