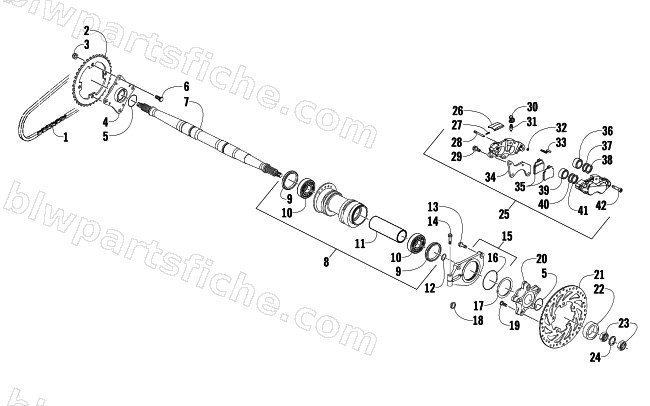

2009 Arctic Cat 300 DVX 2X4 AUTO SPORT — REAR AXLE AND BRAKE ASSEMBLY
2009 300 DVX 2X4 AUTO SPORT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3304-510 | CHAIN DRIVE | 1 | $327.95 | |
| 2 | 3304-291 | SPRKT FINAL DRIVEN | 1 | $66.95 | |
| 3 | 3304-031 | NUT U 10MM | 1 | $2.61 | |
| 4 | 3304-292 | FLANGE SPROCKET | 1 | $100.95 | |
| 5 | 3303-603 | O-RING 39.8*2.2 | 1 | $3.44 | |
| 6 | 3304-403 | BOLT WELD 10*25 | 1 | $2.33 | |
| 7 | 3305-639 | AXLE SHAFT RR | 1 | $298.95 | |
| 8 | 3304-294 | HUB ASSY RR | 1 | $252.95 | |
| 9 | 3304-424 | OIL SEAL 52*62*7 | 1 | $12.35 | |
| 10 | 3304-688 | BEARING BALL RADIAL 6008 | 1 | $79.95 | |
| 11 | 3305-593 | SPACER, REAR AXLE | 1 | $26.95 | |
| 12 | 3304-415 | RING SNAP | 1 | $1.92 | |
| 13 | 3304-687 | BOLT FLANGE 8*25 | 1 | $3.02 | |
| 14 | 3304-518 | R/B 3307-657 | 1 | $0.95 | |
| 15 | 3304-305 | BRKT ASSY RR CALIPER | 1 | $102.95 | |
| 16 | 3305-259 | O-RING,76*3 | 1 | $6.47 | |
| 17 | 3304-519 | CIRCLIP | 1 | $13.73 | |
| 18 | 3304-304 | COLLAR RR CALIPER BRKT | 1 | $3.71 | |
| 19 | 3304-015 | BOLT STEP HOLDER 8*24 | 1 | $2.33 | |
| 20 | 3304-300 | HUB BRAKE DISK | 1 | $102.95 | |
| 21 | 3304-301 | DISK RR BRK | 1 | $108.95 | |
| 22 | 3304-343 | COLLAR RR SHAFT | 1 | $10.97 | |
| 23 | 3304-342 | NUT RR SHAFT | 1 | $13.73 | |
| 25 | 3304-298 | CALIPER ASSY RR | 1 | $341.95 | |
| 26 | 3304-318 | COVER DUST | 1 | $13.73 | |
| 27 | 3303-608 | PIN LOCK 8MM | 1 | $1.37 | |
| 28 | 3304-325 | PIN HANGER | 1 | $6.89 | |
| 29 | 3304-174 | R/B 3304-565 | 1 | $1.95 | |
| 30 | 3304-303 | CAP BLEEDER | 1 | $3.02 | |
| 31 | 3304-302 | SCREW BLEEDER | 1 | $3.30 | |
| 32 | 3304-333 | PLUG | 1 | $1.95 | |
| 33 | 3304-696 | SPRING PAD | 1 | $6.47 | |
| 34 | 3304-328 | BRACKET ASSY L | 1 | $58.95 | |
| 35 | 3304-697 | PAD ASSY | 1 | $47.95 | |
| 36 | 3305-262 | PISTON, CALIPER | 1 | $16.49 | |
| 37 | 3306-585 | DUST SEAL | 1 | $5.65 | |
| 38 | 3305-380 | SEAL PISTON (FOOT BRAKE) | 1 | $16.49 | |
| 39 | 3305-257 | PISTON,CALIPER | 1 | $16.49 | |
| 40 | 3305-406 | DUST SEAL | 1 | $16.95 | |
| 41 | 3303-922 | SEAL PISTON (HAND BRAKE) | 1 | $10.97 | |
| 42 | 3304-440 | SOCKET BOLT | 1 | $6.47 |
