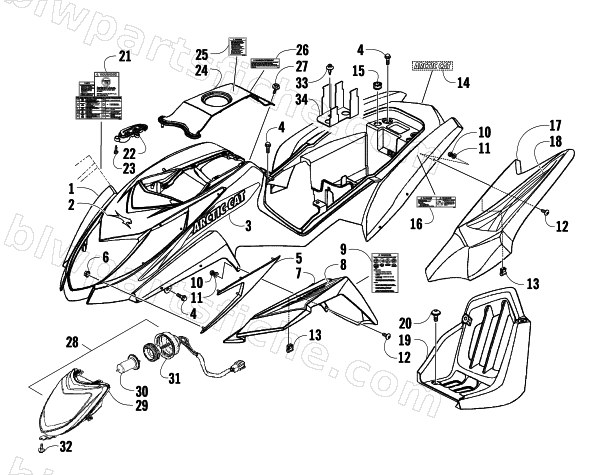

2009 Arctic Cat 300 DVX 2X4 AUTO SPORT — BODY PANEL AND HEADLIGHT ASSEMBLY
2009 300 DVX 2X4 AUTO SPORT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3304-380 | BODY MAIN (BLACK) | 1 | $227.95 | |
| 2 | 8611-267 | DECAL,AIRCAT-DYMOFLEX CHROME | 1 | $20.63 | |
| 3 | 1411-972 | DECAL,TANK-RH (DVX 300) | 1 | $41.95 | |
| 3 | 1411-973 | DECAL,TANK-LH (DVX 300) | 1 | $29.95 | |
| 4 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 | |
| 5 | 3305-675 | PANEL R TRIM (WHITE) | 1 | $12.35 | |
| 5 | 3305-676 | PANEL L TRIM (WHITE) | 1 | $12.35 | |
| 6 | 3304-418 | NUT STAMPED | 1 | $1.23 | |
| 7 | 3305-677 | FENDER R FR (WHITE) | 1 | $58.95 | |
| 7 | 3305-678 | FENDER L FR (WHITE) | 1 | $58.95 | |
| 8 | 1411-974 | DECAL,FR FENDER-RH (DVX 300) | 1 | $58.95 | |
| 8 | 1411-975 | DECAL,FR FENDER-LH (DVX 300) | 1 | $58.95 | |
| 9 | 1411-932 | DECAL,WARNING-GENERAL | 1 | $12.35 | |
| 10 | 3304-431 | NUT LOCK | 1 | $1.23 | |
| 11 | 3304-432 | WASHER PLAIN 7MM | 1 | $0.81 | |
| 12 | 3304-406 | BOLT SPECIAL 6*16 | 1 | $1.78 | |
| 13 | 3304-683 | CLIP FENDER MOUNTNG | 1 | $3.02 | |
| 14 | 0411-762 | DECAL,"ARCTIC CAT"-WHT | 1 | $3.95 | |
| 15 | 3303-232 | RUBBER REAR FENDER | 1 | $1.92 | |
| 16 | 1411-944 | DECAL, TIRE PRESSURE/PASSENGER | 1 | $13.95 | |
| 17 | 3305-679 | FENDER R REAR (WHITE) | 1 | $58.95 | |
| 17 | 3305-680 | FENDER L REAR (WHITE) | 1 | $58.95 | |
| 18 | 1411-970 | DECAL,RR FENDER-RH (DVX) | 1 | $58.95 | |
| 18 | 1411-971 | DECAL,RR FENDER-LH (DVX) | 1 | $58.95 | |
| 19 | 3306-050 | MUDGUARD,R FLOOR | 1 | $50.95 | |
| 19 | 3306-051 | MUDGUARD,L FLOOR | 1 | $50.95 | |
| 20 | 3304-404 | BOLT SPECIAL 6*16 | 1 | $1.78 | |
| 21 | 1411-945 | DECAL,WARNING-DVX PRE RIDE | 1 | $26.95 | |
| 22 | 3304-381 | GUIDE COVER CHANGE HANDLE | 1 | $16.49 | |
| 23 | 3304-650 | SCREW TAPPING 5*16 (CIRCLE HEAD) | 1 | $1.50 | |
| 24 | 3304-248 | COVER TANK (BLACK) | 1 | $30.95 | |
| 25 | 1411-109 | DECAL,WARNING-REVERSE | 1 | $10.97 | |
| 26 | 1411-577 | DECAL,WARNING-OFF ROAD ONLY | 1 | $50.95 | |
| 27 | 3304-029 | BOLT WASH 5*16 | 1 | $0.81 | |
| 28 | 3304-280 | LIGHT ASSY R HEAD | 1 | $203.95 | |
| 29 | 3304-281 | UNIT HEAD LIGHT | 1 | $180.95 | |
| 30 | 3303-846 | BULB HEAD LIGHT | 1 | $42.95 | |
| 31 | 3304-282 | SOCKET COMP | 1 | $37.95 | |
| 33 | 3304-057 | CLIP FENDER | 1 | $1.92 | |
| 34 | 3304-339 | STAY START MAG SW | 1 | $29.95 |
