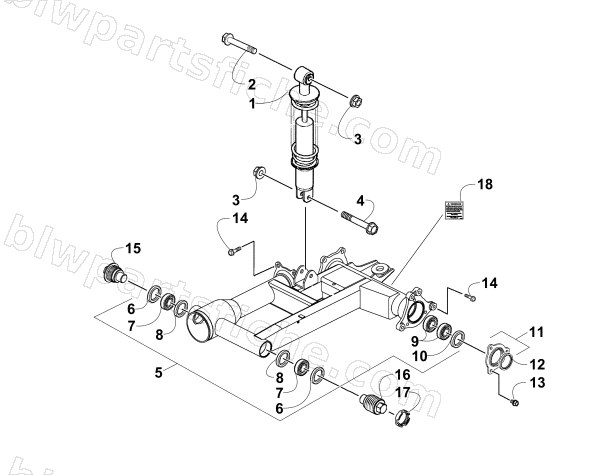

2009 Arctic Cat 250 UTILITY 2X4 AUTOMATIC — REAR SUSPENSION ASSEMBLY
2009 250 UTILITY 2X4 AUTOMATIC
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-949 | CUSHION ASSY RR | 1 | $187.95 | |
| 2 | 3304-182 | BOLT FLANGE 10*57 | 1 | $2.33 | |
| 3 | 3323-178 | NUT,HEX FL CLINCH LOCK M10-1.25 Z&Y | 1 | $2.61 | |
| 4 | 3304-185 | BOLT FLANGE 10*53 | 1 | $2.61 | |
| 5 | 3303-944 | FORK ASSY RR | 1 | $856.95 | |
| 6 | 3304-086 | DUST SEAL 26*40*5 | 1 | $5.51 | |
| 7 | 3304-666 | BEARING BALL RADIAL 30203 | 1 | $69.95 | |
| 8 | 3303-946 | HOLDER GREASE | 1 | $10.97 | |
| 9 | 3304-201 | BEARING BALL RADIAL 6006 | 1 | $47.95 | |
| 10 | 3304-106 | O-RING 58.4*3 | 1 | $4.82 | |
| 11 | 3305-547 | STOPPER ASSY RR | 1 | $47.95 | |
| 12 | 3305-548 | OIL SEAL | 1 | $6.75 | |
| 13 | 3304-544 | BOLT FLANGE 8*12 | 1 | $1.78 | |
| 14 | 3304-181 | BOLT FLANGE 10*25 | 1 | $1.78 | |
| 15 | 3304-018 | FORK PIVOT BOLT RH | 1 | $26.95 | |
| 16 | 3304-019 | FORK PIVOT BOLT LH | 1 | $26.95 | |
| 17 | 3304-020 | FORK PIVOT NUT LOCK | 1 | $17.87 | |
| 18 | 1411-102 | DECAL, WARNING-TOWING (500 LB) | 1 | $6.47 |
