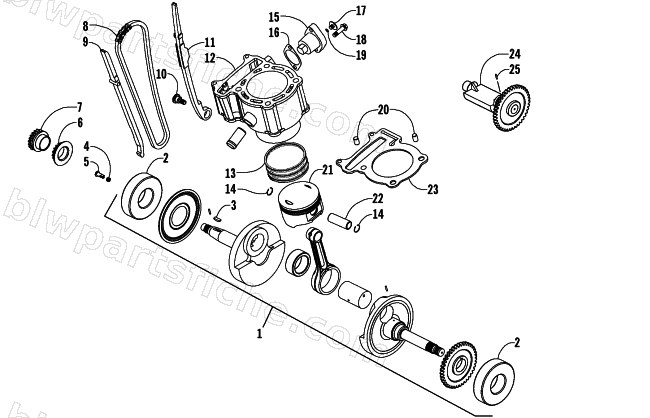

PISTON AND CRANKSHAFT ASSEMBLY
2009 250 UTILITY 2X4 AUTOMATIC
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-663 | CRANK SHAFT COMP **(0) C.2004.06.03 | 1 | $1,058.95 | |
| 2 | 3304-420 | BRG BALL RADIAL 6307 | 1 | $122.95 | |
| 3 | 3304-145 | WOODRUFF KEY 25*14 | 1 | $3.16 | |
| 4 | 3303-694 | SPG OIL THROUGH | 1 | $3.16 | |
| 5 | 3303-693 | OIL THROUGH | 1 | $5.51 | |
| 6 | 3304-236 | GEAR TIMING | 1 | $64.95 | |
| 7 | 3303-689 | GEAR OIL PUMP DRIVE | 1 | $66.95 | |
| 8 | 3303-671 | CHAIN CAM | 1 | $85.95 | |
| 9 | 3303-679 | GUIDE COMP CAM CHAIN | 1 | $23.39 | |
| 10 | 3303-678 | PIVOT CAM CHAIN TENSIONER | 1 | $6.89 | |
| 11 | 3303-676 | TENSIONER CAM CHAIN | 1 | $37.95 | |
| 12 | 3303-653 | CYLINDER COMP | 1 | $525.95 | |
| 13 | 3303-664 | RING SET PISTON | 1 | $79.95 | |
| 14 | 3304-159 | CLIP PISTON PIN 17MM | 1 | $1.78 | |
| 15 | 3307-102 | LIFTER ASSY TENSIONER | 1 | $42.95 | |
| 16 | 3303-035 | GASKET TENSIONER LIFTER | 1 | $3.44 | |
| 18 | 3304-002 | BOLT FLANGE SHF 6*22 | 1 | $0.81 | |
| 19 | 3304-100 | O-RING 1.5*9.5 | 1 | $1.78 | |
| 20 | 3303-342 | PIN DOWEL 10*16 | 1 | $1.64 | |
| 21 | 3303-665 | PISTON | 1 | $58.95 | |
| 22 | 3303-666 | PIN PISTON | 1 | $20.63 | |
| 23 | 3305-461 | GASKET CYLINDER | 1 | $13.73 | |
| 24 | 3303-667 | SHAFT,COMP BALANCER | 1 | $98.95 | |
| 25 | 3304-439 | ROLLER 4*8 | 1 | $1.23 |
