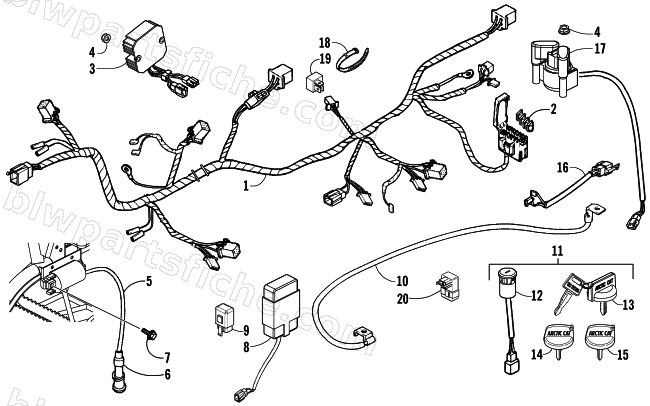

2009 Arctic Cat 250 UTILITY 2X4 AUTOMATIC — ELECTRICAL AND WIRING HARNESS ASSEMBLY
2009 250 UTILITY 2X4 AUTOMATIC
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-838 | HARNESS WIRE **(5) C.V. | 1 | $260.95 | |
| 2 | 3304-210 | BLADE FUSE 10A | 1 | $4.95 | |
| 2 | 3304-211 | BLADE FUSE 15A | 1 | $4.95 | |
| 2 | 3304-212 | BLADE FUSE 30A | 1 | $4.95 | |
| 3 | 3303-836 | REG REC COMP | 1 | $108.95 | |
| 4 | 3303-331 | NUT FLANGE 6MM | 1 | $0.55 | |
| 5 | 3303-830 | COIL ASSY IGNITION | 1 | $94.95 | |
| 6 | 3305-425 | CAP ASSY NOISE SUPPRESSOR | 1 | $30.95 | |
| 7 | 3303-382 | BOLT FLANGE 6*16MM | 1 | $0.81 | |
| 8 | 3303-829 | UNIT ASSY IGNITION | 1 | $316.95 | |
| 9 | 3303-867 | RELAY ASSY LIGHT | 1 | $47.95 | |
| 10 | 3303-841 | CABLE BATTERY | 1 | $17.87 | |
| 11 | 3303-850 | IGNITION SWITCH-ASSY | 1 | $58.95 | |
| 13 | 3304-522 | KEY COVER-ARCTIC CAT | 1 | $4.13 | |
| 14 | 3307-104 | KEY COMP / TJ / R CUT | 1 | $6.89 | |
| 15 | 3304-521 | R/B 3307-105 | 1 | $13.95 | |
| 16 | 3303-134 | SUB CORD | 1 | $6.47 | |
| 17 | 3303-857 | SET START MAG | 1 | $58.95 | |
| 18 | 3303-840 | BAND WIRE | 1 | $0.55 | |
| 19 | 3303-837 | RECTIFIER COMP DIODE | 1 | $20.63 | |
| 20 | 3304-523 | CONTROL ASSY LIGHTING | 1 | $100.95 |
