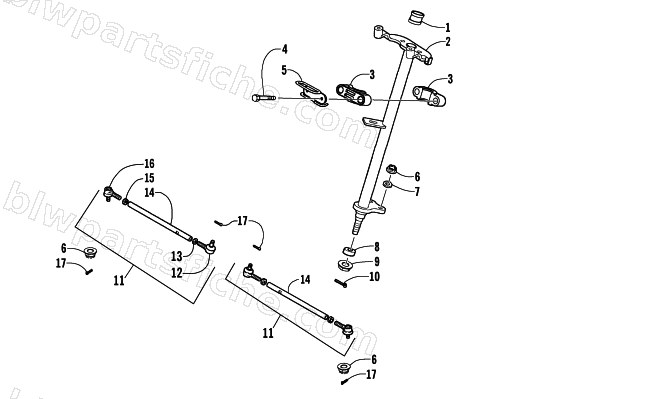

2009 Arctic Cat 150 UTILITY 2X4 AUTOMATIC — STEERING ASSEMBLY
2009 150 UTILITY 2X4 AUTOMATIC
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3305-496 | STEERING BUSHING | 1 | $3.57 | |
| 2 | 3305-103 | STEM COMP STRG | 1 | $112.95 | |
| 3 | 3303-961 | HOLDER STEM STRG | 1 | $16.49 | |
| 4 | 3304-649 | BOLT FLANGE 8*60 | 1 | $2.61 | |
| 5 | 3303-962 | CLAMPER STEM HOLDER | 1 | $10.97 | |
| 6 | 3304-130 | NUT CASTLE 10MM | 1 | $3.30 | |
| 7 | 3305-107 | WASHER | 1 | $1.95 | |
| 8 | 3305-104 | COLLAR STEM BOTTOM | 1 | $3.44 | |
| 9 | 3304-032 | NUT FLANGE 14MM | 1 | $6.34 | |
| 10 | 3303-470 | PIN SPLIT 3.0*25 30251 CPN | 1 | $1.37 | |
| 11 | 3305-105 | ROD ASSY STEERING | 1 | $90.95 | |
| 12 | 3303-973 | JOINT L BALL | 1 | $35.95 | |
| 13 | 3303-327 | NUT HEX LH 10MM | 1 | $1.50 | |
| 14 | 3305-106 | ROD TIE | 1 | $58.95 | |
| 15 | 3303-326 | NUT HEX 10MM | 1 | $1.50 | |
| 16 | 3303-971 | JOINT R BALL | 1 | $37.95 | |
| 17 | 3304-143 | PIN SPLIT 2.5*30 | 1 | $1.37 |
