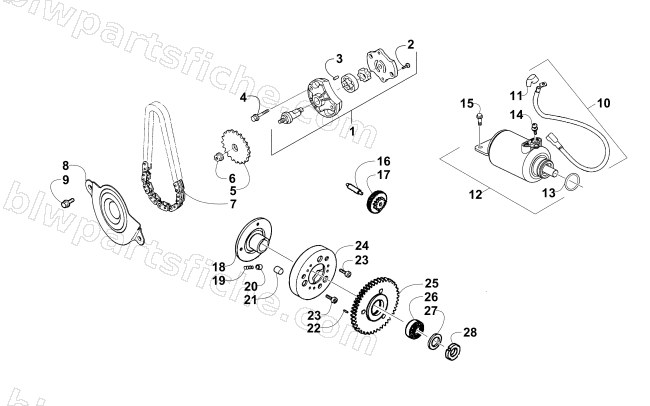

2009 Arctic Cat 150 UTILITY 2X4 AUTOMATIC — STARTER MOTOR AND OIL PUMP ASSEMBLY
2009 150 UTILITY 2X4 AUTOMATIC
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3304-999 | PUMP ASSY OIL | 1 | $54.95 | |
| 2 | 3304-426 | SCREW PAN 3*10 | 1 | $0.81 | |
| 3 | 3304-144 | PIN DOWEL 4*6.5 | 1 | $1.37 | |
| 4 | 3303-385 | BOLT FLANGE SH 6*28 | 1 | $0.81 | |
| 5 | 3303-046 | SPRKT OIL PUMP DRIVEN **9000 C.2000.04 | 1 | $12.35 | |
| 6 | 3303-331 | NUT FLANGE 6MM | 1 | $0.55 | |
| 7 | 3305-002 | CHAIN OIL PUMP | 1 | $33.95 | |
| 8 | 3305-003 | OIL SEPARATER | 1 | $4.82 | |
| 9 | 3303-381 | BOLT FLANGE SH 6*12 | 1 | $0.81 | |
| 10 | 3305-012 | CABLE START MOTOR | 1 | $33.95 | |
| 11 | 3305-252 | BOOT,STARTER SOLENOID | 1 | $3.57 | |
| 12 | 3305-011 | MOTOR UNIT START | 1 | $248.95 | |
| 13 | 3304-104 | O-RING 24.4*3.1 | 1 | $1.95 | |
| 14 | 3305-019 | SCREW WASHER 5*8 | 1 | $1.09 | |
| 15 | 3303-382 | BOLT FLANGE 6*16MM | 1 | $0.81 | |
| 16 | 3305-005 | SHAFT STARTER REDUCTION GEAR | 1 | $5.78 | |
| 17 | 3305-004 | GEAR STARTER REDUCTION | 1 | $37.95 | |
| 18 | 3305-009 | FLANGE STARTING CLUTCH | 1 | $33.95 | |
| 19 | 3305-008 | SPRING ROLLER STARTER CLUTCH | 1 | $2.47 | |
| 20 | 3303-395 | ROLLER 6*10 | 1 | $1.78 | |
| 21 | 3305-015 | ROLLER 10*10 | 1 | $3.30 | |
| 22 | 3304-959 | KEY WOODRUFF 25*14*4 | 1 | $3.02 | |
| 23 | 3305-020 | SOCKET BOLT 8*10 | 1 | $3.30 | |
| 24 | 3305-746 | OUTER COMP ST CLUTCH | 1 | $108.95 | |
| 25 | 3305-006 | GEAR COMP STARTING CLUTCH | 1 | $82.95 | |
| 26 | 3305-016 | BRG NEEDLE 28*32*17 | 1 | $0.00 | |
| 27 | 3305-014 | WASHER THRUST 22.2*39*2.5 | 1 | $3.57 | |
| 28 | 3305-013 | NUT LOCK 22MM | 1 | $4.13 |
