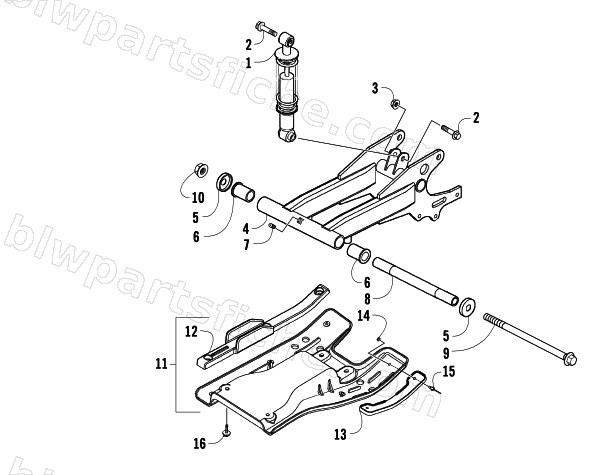

2009 Arctic Cat 150 UTILITY 2X4 AUTOMATIC — REAR SUSPENSION ASSEMBLY
2009 150 UTILITY 2X4 AUTOMATIC
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3305-207 | CUSHION ASSY RR | 1 | $228.95 | |
| 2 | 3303-376 | SCREW,CAP-HFH M10X1.25X40 | 1 | $2.06 | |
| 3 | 3323-178 | NUT,HEX FL CLINCH LOCK M10-1.25 Z&Y | 1 | $2.61 | |
| 4 | 3305-205 | FORK ASSY RR | 1 | $421.95 | |
| 5 | 3303-192 | CAP RR FORK DUST SEAL | 1 | $5.37 | |
| 6 | 3304-359 | BUSH RR FORK | 1 | $16.49 | |
| 7 | 3303-393 | NIPPLE GREASE | 1 | $6.75 | |
| 8 | 3304-358 | COLLAR RR FORK DIST | 1 | $30.95 | |
| 9 | 3305-130 | AXLE RR FORK | 1 | $26.95 | |
| 10 | 3304-411 | NUT U 14MM | 1 | $9.59 | |
| 11 | 3305-197 | GUARD ASSY RR FORK | 1 | $48.95 | |
| 12 | 3305-726 | SLIDER CHAIN | 1 | $20.63 | |
| 13 | 3305-725 | PROTECTOR DISK | 1 | $12.35 | |
| 14 | 3305-773 | WASHER | 1 | $0.81 | |
| 16 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 |
