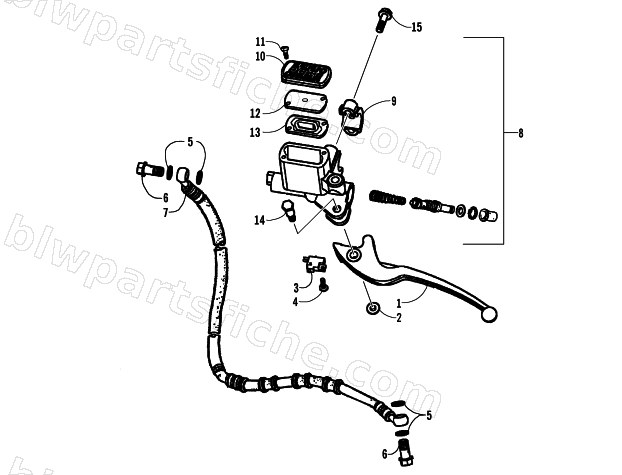

2009 Arctic Cat 150 UTILITY 2X4 AUTOMATIC — HYDRAULIC HAND BRAKE ASSEMBLY
2009 150 UTILITY 2X4 AUTOMATIC
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3305-084 | R/B 3303-206 | 1 | $20.95 | |
| 2 | 3304-654 | NUT FLANGE 6MM | 1 | $1.23 | |
| 3 | 3303-141 | SW ASSY RR STOP | 1 | $20.63 | |
| 4 | 3303-321 | SCREW WASHER 4*12 | 1 | $0.81 | |
| 5 | 3303-284 | WASHER OIL BOLT **(1) C.98.06.01. | 1 | $1.23 | |
| 6 | 3303-257 | R/B 3307-067 | 1 | $5.95 | |
| 7 | 3305-076 | HOSE ASSY RR BRAKE | 1 | $163.95 | |
| 8 | 3305-716 | R/B 3303-163 | 1 | $163.95 | |
| 9 | 3303-175 | HOLDER M/C | 1 | $10.97 | |
| 10 | 3303-174 | CAP MASTER CYLINDER | 1 | $13.73 | |
| 11 | 3303-318 | SCREW FLAT 4*12 | 1 | $1.78 | |
| 12 | 3305-250 | R/B 3306-225 | 1 | $11.95 | |
| 13 | 3305-309 | DIAPHRAGM | 1 | $20.63 | |
| 14 | 3303-254 | BOLT HANDLE LEVER **(0) C.98.04.02 | 1 | $1.09 | |
| 15 | 3304-551 | BOLT FLANGE 6*22 | 1 | $0.81 |
