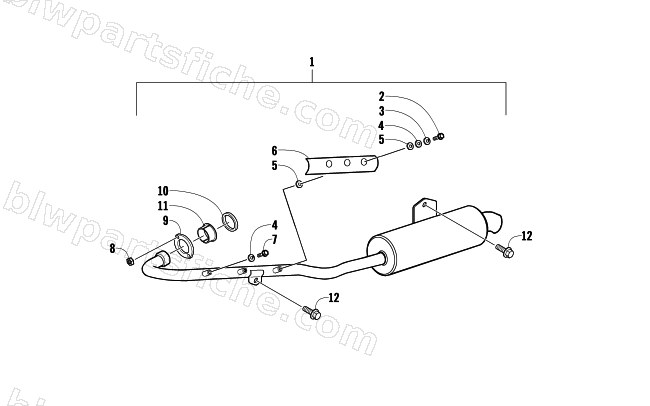

2009 Arctic Cat 150 UTILITY 2X4 AUTOMATIC — EXHAUST ASSEMBLY
2009 150 UTILITY 2X4 AUTOMATIC
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3305-750 | MUFFLER ASSY EXH | 1 | $750.95 | |
| 2 | 3304-686 | BOLT FLANGE SH 6*12 | 1 | $1.09 | |
| 3 | 3304-140 | WASHER SPRING 6MM | 1 | $0.81 | |
| 4 | 3304-134 | WASHER PLAIN 6MM | 1 | $0.81 | |
| 5 | 3303-727 | PACKING PROTECTOR | 1 | $3.02 | |
| 6 | 3303-730 | PROTECTOR EXH PIPE | 1 | $20.63 | |
| 7 | 3305-782 | R/B 3305-769 | 1 | $5.95 | |
| 8 | 3304-124 | NUT HEX 6MM | 1 | $0.81 | |
| 9 | 3305-186 | JOINT EXH PIPE | 1 | $13.73 | |
| 10 | 3305-188 | GASKET EXH PIPE | 1 | $4.82 | |
| 11 | 3305-187 | COLLAR EXHAUST PIPE JOINT | 1 | $3.30 | |
| 12 | 3305-749 | BOLT FLANGE 8*28 | 1 | $1.78 |
