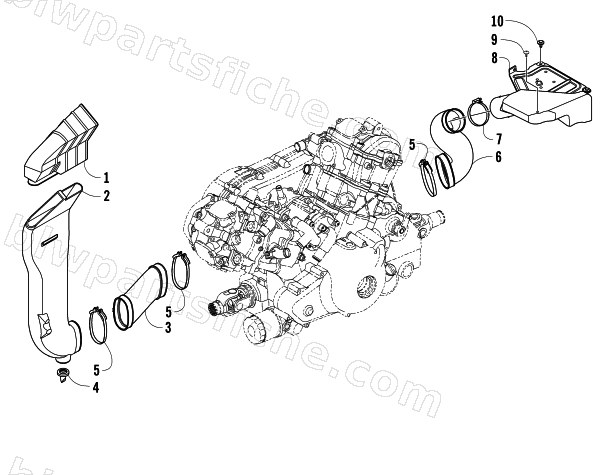

2009 Arctic Cat 1000 TRV — CASE/BELT COOLING ASSEMBLY
2009 1000 TRV
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0413-137 | SHROUD,AIR IN-BELT | 1 | $64.95 | |
| 2 | 0413-138 | DUCT,COOLING-BELT IN | 1 | $69.95 | |
| 3 | 0413-139 | BOOT,COOLING-BELT IN | 1 | $23.39 | |
| 4 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 5 | 0423-730 | CLAMP,SCREW-OVAL | 1 | $20.63 | |
| 6 | 0413-135 | BOOT,COOLING-BELT OUT | 1 | $97.95 | |
| 7 | 0423-019 | CLAMP,HOSE-WORM (NORMA 50-70) | 1 | $2.47 | |
| 8 | 0413-207 | DUCT,COOLING-BELT OUT | 1 | $61.95 | |
| 9 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 10 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 |
