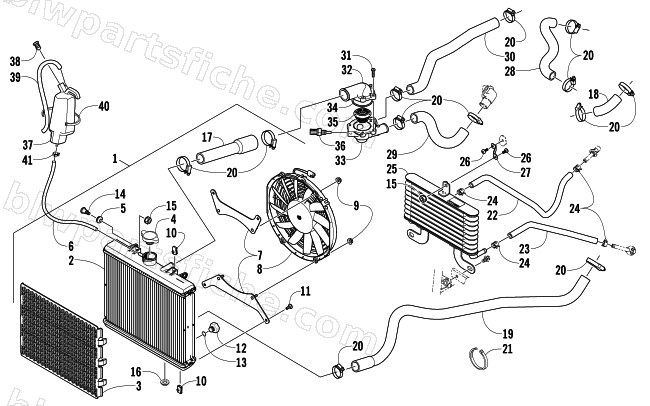

COOLING ASSEMBLY
2008 THUNDERCAT AUTOMATIC TRANSMISSION 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0413-178 | RADIATOR ASSEMBLY | 1 | $1,215.95 | |
| 2 | 0413-179 | RADIATOR-FABRICATED | 1 | $577.95 | |
| 3 | 0413-181 | SCREEN,RADIATOR | 1 | $86.95 | |
| 4 | 0413-255 | CAP,RADIATOR | 1 | $53.95 | |
| 5 | 0423-030 | GROMMET(LV 11378) | 1 | $4.26 | |
| 6 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 7 | 0413-190 | BRKT,MTG UPPER-FAN | 1 | $52.95 | |
| 7 | 0413-191 | BRKT,MTG LOWER-FAN | 1 | $56.95 | |
| 8 | 0413-123 | FAN,RADIATOR | 1 | $224.95 | |
| 9 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 10 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 11 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 12 | 0413-195 | PLUG,DRAIN-RADIATOR | 1 | $20.63 | |
| 13 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 14 | 0423-484 | BOLT,SHOULDER-9.6X9.55XM6 BLK | 1 | $2.69 | |
| 15 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 16 | 0423-028 | BUSHING,STEM(LV28098) | 1 | $4.95 | |
| 17 | 0410-120 | HOSE,COOLANT-RAD UPPER | 1 | $47.95 | |
| 18 | 0410-115 | HOSE,COOLANT-#1 COLD | 1 | $24.77 | |
| 19 | 0410-119 | HOSE,COOLANT-PUMP SUCTION | 1 | $76.95 | |
| 20 | 0423-496 | CLAMP,HOSE- WORM 19-38mmX12.7mm | 1 | $2.47 | |
| 21 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 22 | 0410-149 | HOSE,OIL-IN | 1 | $85.95 | |
| 23 | 0410-168 | HOSE,OIL-OUT (450 MM) | 1 | $64.95 | |
| 24 | 0423-632 | CLAMP,HOSE #5 MICRO-GEAR SIZE 05 | 1 | $4.82 | |
| 25 | 0413-211 | COOLER,OIL | 1 | $357.95 | |
| 26 | 8476-612 | SCREW,MACH-TSTRH M6X1.0X12 Z&Y | 1 | $0.95 | |
| 27 | 0513-022 | BRKT,MTG UPPER-OIL COOLER-PTD | 1 | $10.97 | |
| 28 | 0410-116 | HOSE,COOLANT-#2 COLD | 1 | $32.95 | |
| 29 | 0410-117 | HOSE,COOLANT-#1 HOT | 1 | $37.95 | |
| 30 | 0410-118 | R/B 0410-195 | 1 | $54.95 | |
| 31 | 8470-520 | SCREW,MACH-TSPNH M5X.8X20 CL8.8 Z&Y | 1 | $0.40 | |
| 32 | 0808-092 | COVER, THERMOSTAT | 1 | $17.87 | |
| 33 | 0808-091 | HOUSING, THERMOSTAT-MACH (RB 0808-189) | 1 | $100.95 | |
| 34 | 0830-173 | ORING,ID44.12 X CS2.62 | 1 | $1.50 | |
| 35 | 0808-093 | THERMOSTAT, 71 DEG (FINAL) | 1 | $37.95 | |
| 36 | 0808-124 | SENSOR,WATER TEMP.-ASSY | 1 | $26.95 | |
| 37 | 0413-086 | BOTTLE,OVERFLOW | 1 | $63.95 | |
| 38 | 0413-087 | STOPPER,COOLANT | 1 | $4.54 | |
| 39 | 0610-011 | HOSE,OILLINE 5/16X25' | 1 | $109.95 | |
| 40 | 0623-316 | CABLE TIE,SGL LOOP-.500X14-BLK (RTE1400) | 1 | $10.97 | |
| 41 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 |
