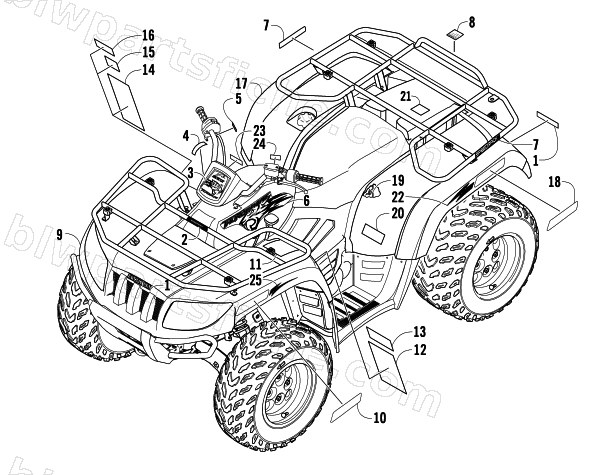

2008 Arctic Cat THUNDERCAT AUTOMATIC TRANSMISSION 4X4 — BODY PANELS AND DECALS
2008 THUNDERCAT AUTOMATIC TRANSMISSION 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1411-817 | DECAL,GRAPHIC FRONT/REAR(SILVER H2) | 1 | $24.77 | |
| 2 | 1411-050 | DECAL,SPEEDRACK | 1 | $1.78 | |
| 4 | 0411-426 | DECAL,WARNING-CLUTCH COVER-ATV | 1 | $3.30 | |
| 5 | 0411-966 | DECAL,WARNING DIFF LOCK(MINIATURE) | 1 | $1.78 | |
| 6 | 1411-818 | DECAL,UPPER FRONT FENDER-RH(SILVER H2) | 1 | $50.95 | |
| 6 | 1411-819 | DECAL,UPPER FRONT FENDER-LH(SILVER H2) | 1 | $50.95 | |
| 7 | 0411-965 | DECAL,"SPEEDRACK"(MRP) | 1 | $3.30 | |
| 8 | 1411-077 | R/B 4411-550 | 1 | $3.95 | |
| 9 | 2516-062 | FENDER,FRONT - ASSEMBLY (SILVER)-H2 | 1 | $799.95 | |
| 10 | 0411-818 | REFLECTOR,FRONT-RH | 1 | $6.47 | |
| 10 | 0411-819 | REFLECTOR,FRONT-LH | 1 | $6.47 | |
| 11 | 0411-401 | DECAL, WARNING-AGE (16) | 1 | $58.95 | |
| 12 | 0411-218 | DECAL,WARNING-GENERAL | 1 | $17.87 | |
| 13 | 1411-574 | DECAL,WARNING-OFF ROAD ONLY | 1 | $3.30 | |
| 14 | 1411-250 | DECAL,WARNING-PRE RIDE(AE) | 1 | $12.35 | |
| 15 | 0411-835 | DECAL,WARNING HILL | 1 | $4.95 | |
| 16 | 1411-906 | DECAL,WARNING-THROTTLE | 1 | $16.49 | |
| 17 | 2516-078 | FENDER,REAR - ASSEMBLY (SILVER - H2) | 1 | $630.95 | |
| 18 | 1411-592 | REFLECTOR,REAR-RH | 1 | $5.37 | |
| 18 | 1411-593 | REFLECTOR,REAR-LH | 1 | $5.37 | |
| 19 | 0470-658 | SHIELD,HEAT-BATTERY BOX | 1 | $2.61 | |
| 20 | 0411-430 | DECAL, TIRE PRESSURE | 1 | $3.30 | |
| 21 | 0411-435 | DECAL, WARNING-PASSENGER | 1 | $66.95 | |
| 22 | 1411-822 | DECAL,REAR SIDE FENDER-RH (H2) | 1 | $16.49 | |
| 22 | 1411-823 | DECAL,REAR SIDE FENDER-LH (H2) | 1 | $15.11 | |
| 23 | 8611-267 | DECAL,AIRCAT-DYMOFLEX CHROME | 1 | $20.63 | |
| 24 | 1411-865 | DECAL,WARNING-BRAKE LEVER LOCK | 1 | $3.30 | |
| 25 | 1411-820 | DECAL,FRONT SIDE FENDER-RH (H2) | 1 | $15.11 | |
| 25 | 1411-821 | DECAL,FRONT SIDE FENDER-LH (H2) | 1 | $4.95 |
