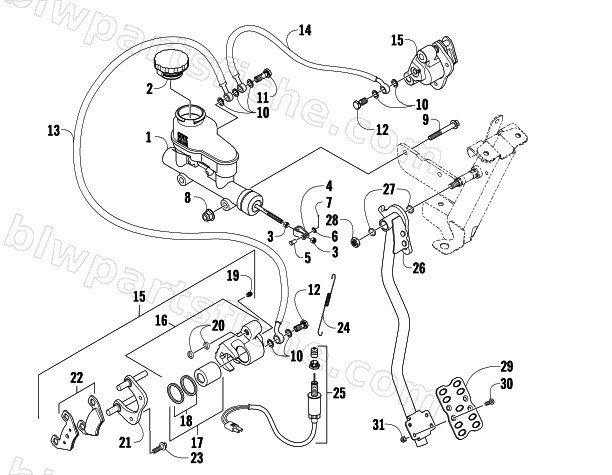

2008 Arctic Cat PROWLER XTX 700 H1 AUTOMATIC 4X4 — HYDRAULIC BRAKE ASSEMBLY
2008 PROWLER XTX 700 H1 AUTOMATIC 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2502-043 | CYLINDER,MASTER BRAKE SIDEWINDER II-ASSY | 1 | $235.95 | |
| 2 | 2502-044 | KIT,SERVICE CAP-TANDEM MC SIDEWINDER II | 1 | $53.95 | |
| 3 | 0402-592 | NUT, JAM,M8 X 1.25 | 1 | $0.95 | |
| 4 | 1402-520 | CLEVIS | 1 | $47.95 | |
| 5 | 1402-377 | PIN,CLEVIS-1/4X51/64 Z&Y | 1 | $10.97 | |
| 6 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 8 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 9 | 8408-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 Z&Y | 1 | $1.37 | |
| 10 | 0423-178 | WASHER,CRUSH | 1 | $1.78 | |
| 11 | 0423-610 | BOLT,DOUBLE BANJO FITTING | 1 | $10.97 | |
| 12 | 0423-413 | BOLT,BANJO FITTING-20mm | 1 | $4.13 | |
| 13 | 1402-389 | HOSE,BRAKE-FRONT | 1 | $126.95 | |
| 14 | 1402-290 | HOSE, BRAKE-FRONT RH | 1 | $100.95 | |
| 15 | 1502-730 | KIT-CALIPER,FULL ASSY-RH | 1 | $390.95 | |
| 15 | 1502-731 | KIT-CALIPER,FULL ASSY-LH | 1 | $390.95 | |
| 16 | 1436-160 | KIT-HOUSING,PISTONS,SEALS,BLEADER-RH | 1 | $266.95 | |
| 16 | 1436-161 | KIT-HOUSING,PISTONS,SEALS,BLEADER-LH | 1 | $268.95 | |
| 17 | 0502-606 | SET,PISTONS/SEALS | 1 | $90.95 | |
| 19 | 0502-609 | BLEEDER,CALIPER (FC) | 1 | $26.95 | |
| 20 | 0502-608 | GUIDE,O-RINGS-CALIPER (FC) | 1 | $30.95 | |
| 21 | 0502-960 | KIT,BRACKET ASSEMBLY (9.95" DISC) | 1 | $131.95 | |
| 22 | 1436-420 | KIT-PAD,BRAKE-SET | 1 | $62.95 | |
| 23 | 8408-826 | SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353 | 1 | $0.40 | |
| 24 | 0502-785 | SPRING,BRAKE SWITCH | 1 | $5.78 | |
| 25 | 0409-089 | SWITCH,BRAKE-FOOT | 1 | $58.95 | |
| 26 | 1502-319 | LEVER,BRAKE - PTD BLK | 1 | $82.95 | |
| 27 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 28 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 29 | 1502-323 | PAD,BRAKE-BLACK | 1 | $30.95 | |
| 30 | 8474-516 | SCREW,MACH-TSFH M5X0.8X16 CL8.8 BLK | 1 | $0.68 | |
| 31 | 8422-502 | NUT, M5 X 0.8 NYLOC - YL ZN | 1 | $0.40 |
