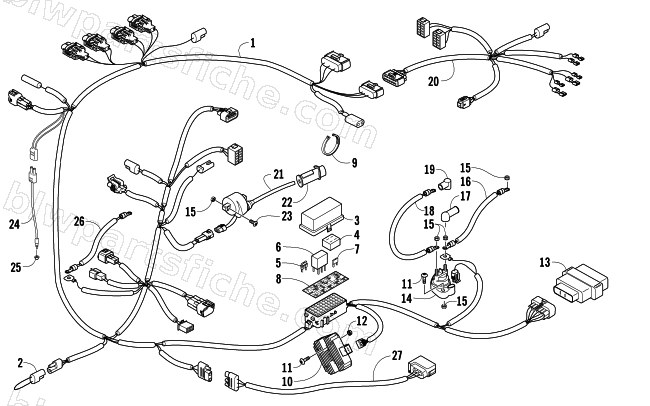

2008 Arctic Cat PROWLER XT 650 H1 AUTOMATIC 4X4 — WIRING HARNESS ASSEMBLY
2008 PROWLER XT 650 H1 AUTOMATIC 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0486-311 | HARNESS/DIA,MAIN (09 PROWLER XT) | 1 | $668.95 | |
| 2 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 | |
| 3 | 0530-008 | COVER, PDM - ASSY | 1 | $34.95 | |
| 4 | 0430-037 | HOLDER,SPARE FUSE-FOAM | 1 | $3.02 | |
| 5 | 0430-034 | DIODE, MINI-1A | 1 | $16.49 | |
| 6 | 0430-033 | RELAY, SPDT-5P 12V/30A | 1 | $27.95 | |
| 6 | 0430-045 | RELAY,SPST-4P 12V/20A | 1 | $30.95 | |
| 7 | 0430-032 | FUSE, MINI-10A | 1 | $3.02 | |
| 7 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 7 | 0430-030 | FUSE, MINI-30A | 1 | $2.88 | |
| 8 | 1411-576 | DECAL,PDM (07 PROWLER) | 1 | $64.95 | |
| 9 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 10 | 0824-037 | REGULATOR,VOLTAGE (W/TACH SIGNAL) | 1 | $113.95 | |
| 11 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 12 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 13 | 0824-048 | CDI UNIT,SL-SS | 1 | $736.95 | |
| 14 | 0445-058 | SOLENOID,STARTER RELAY | 1 | $37.95 | |
| 15 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 16 | 0445-061 | CABLE,SOLENOID-STARTER (40" RED #6) | 1 | $42.95 | |
| 17 | 0645-327 | BOOT,TERMINAL-SOLENOID | 1 | $1.64 | |
| 18 | 0445-049 | CABLE,BATTERY-SOLENOID (18" RED #6) | 1 | $27.95 | |
| 19 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 20 | 0486-224 | HARNESS,CONSOLE (07 PROWLER XT) | 1 | $122.95 | |
| 21 | 0824-036 | COIL,IGNITION-ASSY | 1 | $252.95 | |
| 22 | 0824-049 | CAP,SPARK PLUG () | 1 | $15.11 | |
| 23 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 24 | 0409-009 | SWITCH,BRAKE-ASSY | 1 | $82.95 | |
| 25 | 0402-991 | RETAINER,BRAKE SWITCH | 1 | $6.75 | |
| 26 | 0445-050 | CABLE,BATTERY-ENGINE (40" BLK #6) | 1 | $42.95 | |
| 27 | 0486-176 | HARNESS,ADAPTER-TAILLIGHT 06 PROWLER | 1 | $37.95 |
