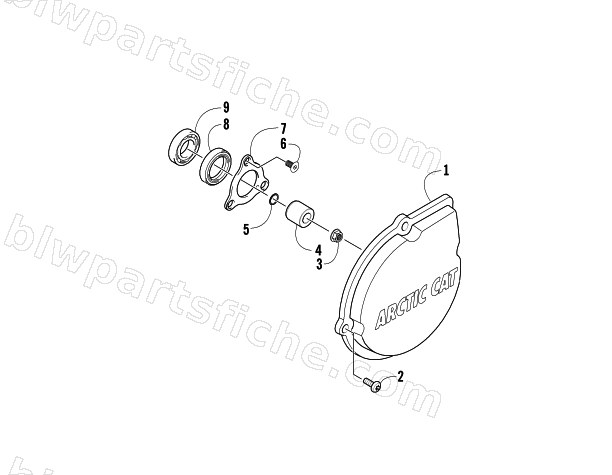

2008 Arctic Cat PROWLER XT 650 H1 AUTOMATIC 4X4 — OUTER MAGNETO COVER ASSEMBLY
2008 PROWLER XT 650 H1 AUTOMATIC 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0820-062 | COVER, MAGNETO - OUTER | 1 | $58.95 | |
| 2 | 0826-008 | SCREW, MACH-TSPH M6 X 1 X 20W/THREADLOC | 1 | $1.50 | |
| 3 | 0827-008 | NUT, HEX FLANGE, M10 x 1.25 | 1 | $0.95 | |
| 4 | 0820-061 | BUSHING | 1 | $17.87 | |
| 5 | 0830-108 | O-RING,STARTER CUP | 1 | $1.50 | |
| 6 | 0826-031 | SCREW,MACH-TSFH M6 X1X12 W/ THD LOCK | 1 | $1.23 | |
| 7 | 0805-008 | RETAINER, OIL SEAL | 1 | $16.49 | |
| 8 | 0830-226 | SEAL,OIL-25X48X7 | 1 | $24.77 | |
| 9 | 1602-981 | BEARING,25MMX47MMX8MM-PEER | 1 | $17.87 |
