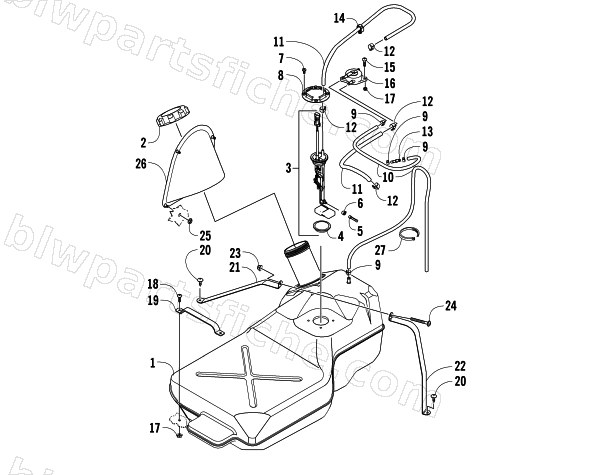

2008 Arctic Cat PROWLER XT 650 H1 AUTOMATIC 4X4 — GAS TANK ASSEMBLY
2008 PROWLER XT 650 H1 AUTOMATIC 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0570-265 | R/B 0570-512 | 1 | $567.95 | |
| 2 | 0470-541 | CAP, FUEL - 3.5" | 1 | $46.95 | |
| 3 | 0570-255 | SENDER,FUEL LEVEL-KIT | 1 | $169.95 | |
| 4 | 0470-521 | SEAL, FUEL LEVEL SENDER | 1 | $3.16 | |
| 5 | 0470-475 | FILTER, FUEL | 1 | $16.49 | |
| 6 | 0423-603 | CLAMP,HOSE-.31 DIA | 1 | $3.57 | |
| 7 | 1623-158 | SCREW,PLASTITE-TSPNH 1/4-10X.500 Z&BLK | 1 | $0.95 | |
| 8 | 0470-639 | MOUNT,FUEL LEVEL SENDER | 1 | $4.82 | |
| 9 | 0423-688 | CLAMP,SNAP-10 MM | 1 | $2.33 | |
| 10 | 0410-070 | HOSE,FUEL-25 FT (0419-272 CTL) | 1 | $66.95 | |
| 11 | 0410-143 | HOSE,FUEL-1/4" 25' (0410-141 CTL) | 1 | $217.95 | |
| 12 | 0423-689 | CLAMP,SNAP-12 MM | 1 | $2.06 | |
| 13 | 0470-702 | HOSE BARB,INTAKE MANIFOLD | 1 | $2.88 | |
| 14 | 0623-454 | CLIP,SNAP-IN (SPEEDO-CABLE) | 1 | $2.95 | |
| 15 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 16 | 0470-758 | PUMP,FUEL | 1 | $69.95 | |
| 17 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 18 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 19 | 0470-544 | BRACKET,FUEL TANK MOUNT | 1 | $16.49 | |
| 20 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 21 | 0570-127 | STRAP,FUEL TANK-ASSY | 1 | $22.95 | |
| 22 | 0570-128 | STRAP,FUEL TANK-ASSY | 1 | $22.95 | |
| 23 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 24 | 8476-650 | SCREW,MACH-TSTRH M6X1.0X50 Z&Y | 1 | $1.50 | |
| 25 | 0423-357 | NUT, STAMPED-1/4" (SD 25001 SOH) | 1 | $0.95 | |
| 26 | 1406-886 | INSERT,FUEL CAP | 1 | $20.63 | |
| 27 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 |
