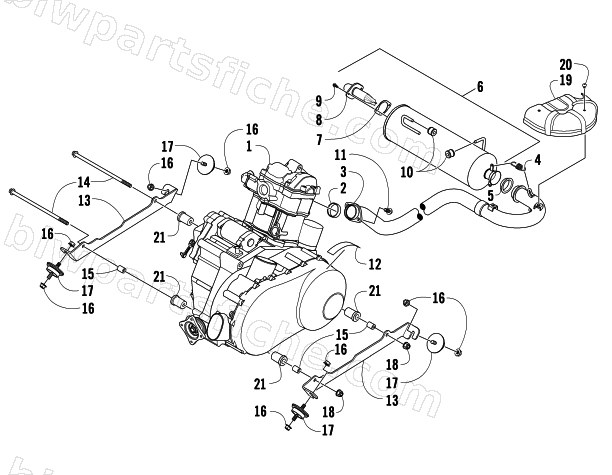

2008 Arctic Cat PROWLER XT 650 H1 AUTOMATIC 4X4 — ENGINE AND EXHAUST
2008 PROWLER XT 650 H1 AUTOMATIC 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0437-072 | ENGINE A650F-B- H1(PRLR) W/BUSHINGS | 1 | $4,696.95 | |
| 2 | 0412-338 | GASKET,EXHAUST PIPE | 1 | $20.63 | |
| 3 | 0512-427 | PIPE,EXHAUST-BLACK | 1 | $122.95 | |
| 4 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 | |
| 5 | 0412-375 | SEAL,EXHAUST | 1 | $20.63 | |
| 6 | 0512-401 | MUFFLER-BLACK | 1 | $494.95 | |
| 7 | 0412-438 | GASKET,SPARK ARRESTER | 1 | $15.11 | |
| 8 | 0512-432 | SPARK ARRESTER-BLACK(SERVICE PART) | 1 | $56.95 | |
| 9 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 10 | 0412-577 | BUSHING,MUFFLER | 1 | $2.88 | |
| 11 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 12 | 0411-426 | DECAL,WARNING-CLUTCH COVER-ATV | 1 | $3.30 | |
| 13 | 1506-998 | BRACKET,ENGINE CRADLE RH-BLACK | 1 | $47.95 | |
| 13 | 1506-999 | BRACKET,ENGINE CRADLE LH-BLACK | 1 | $47.95 | |
| 14 | 1423-064 | R/B 1423-431 | 1 | $20.95 | |
| 15 | 1423-025 | SPACER,ENGINE MOUNT | 1 | $10.97 | |
| 16 | 8424-002 | NUT,HEX-FLG M10X1.25 CL8 Z&Y | 1 | $0.68 | |
| 17 | 0408-014 | MOUNT,ENGINE | 1 | $47.95 | |
| 18 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 19 | 0412-462 | SHIELD,EXHAUST PIPE | 1 | $42.95 | |
| 20 | 8477-610 | SCREW,MACH-TSTRH M6X1.0X10 Z&BLK | 1 | $0.68 | |
| 21 | 0801-180 | R/B 0801-268 | 1 | $10.95 |
