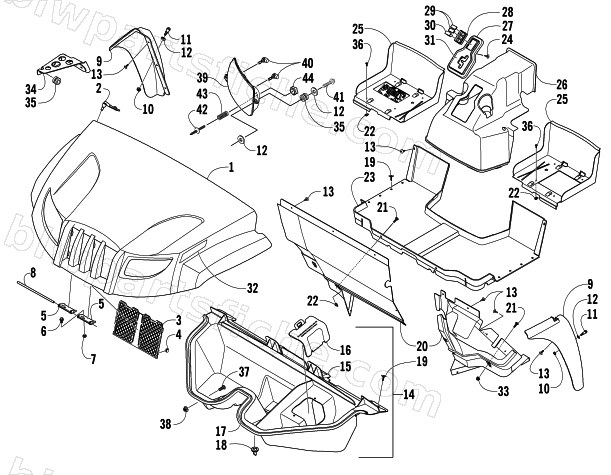

FRONT BODY PANEL ASSEMBLY
2008 PROWLER 650 H1 AUTOMATIC 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-682 | HOOD-ASSY MARSH GREEN | 1 | $732.95 | |
| 2 | 2606-624 | STRAP,HOLDDOWN-HOOD | 1 | $13.73 | |
| 3 | 1406-733 | GRILL, SCREEN-BLACK | 1 | $26.95 | |
| 4 | 0123-987 | CLIP,U-TYPE | 1 | $0.68 | |
| 5 | 1506-798 | BRACKET,HOOD-PAINTED | 1 | $19.25 | |
| 6 | 8408-020 | SCREW,CAP-HFH M10X1.25X20 CL8.8 Z&Y | 1 | $3.16 | |
| 7 | 0423-157 | NUT, TOP-LOCK | 1 | $0.95 | |
| 8 | 1406-915 | PIN,HOOD | 1 | $13.73 | |
| 9 | 1406-730 | FENDER,FRONT RH MARSH GREEN | 1 | $50.95 | |
| 9 | 1406-731 | FENDER,FRONT LH MARSH GREEN | 1 | $50.95 | |
| 10 | 1623-066 | NUT,FLANGE-1/4-20 TOPLOCK-GD 5 Z&Y | 1 | $0.95 | |
| 11 | 0623-855 | SCREW, HEX,DOME HEAD SHOULDER-1/4-20X.50 | 1 | $13.73 | |
| 12 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 13 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 14 | 4506-037 | BOX,STORAGE-UNDER HOOD (ASSY) | 1 | $244.95 | |
| 15 | 1406-945 | BOX,STORAGE-UNDER HOOD | 1 | $198.95 | |
| 16 | 1406-944 | COVER,ACCESS-MASTER CYLINDER | 1 | $26.95 | |
| 17 | 1406-946 | SEAL STORAGE BOX | 1 | $79.95 | |
| 18 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 19 | 0423-545 | SCREW,BODY-SELF TAP #12 X 3/4 A Z&B | 1 | $1.09 | |
| 20 | 1406-632 | PANEL,FENDER-INNER-LH | 1 | $164.95 | |
| 20 | 2516-457 | PANEL,FENDER-INNER-ROUTED | 1 | $212.95 | |
| 21 | 8468-620 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 BLK | 1 | $0.68 | |
| 22 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 23 | 2516-403 | FLOOR,PROWLER-ASSY | 1 | $539.95 | |
| 24 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 25 | 1406-854 | BASE,SEAT-RIGHT | 1 | $64.95 | |
| 25 | 1406-869 | BASE,SEAT-LEFT | 1 | $69.95 | |
| 26 | 1406-649 | CONSOLE, CENTER | 1 | $260.95 | |
| 27 | 1406-825 | GATE, SHIFT | 1 | $54.95 | |
| 28 | 0409-069 | PANEL,SWITCH MOUNT | 1 | $20.63 | |
| 29 | 0409-070 | PLUG,SWITCH HOLE | 1 | $3.57 | |
| 30 | 0409-071 | SWITCH,REVERSE OVERRIDE | 1 | $47.95 | |
| 31 | 1411-195 | DECAL,GRAPHIC-SHIFT GATE | 1 | $36.95 | |
| 32 | 0411-818 | REFLECTOR,FRONT-RH | 1 | $6.47 | |
| 32 | 0411-819 | REFLECTOR,FRONT-LH | 1 | $6.47 | |
| 33 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 | |
| 34 | 2506-066 | BRACKET,SUPPORT-RH-PTD BLK | 1 | $27.95 | |
| 34 | 2506-067 | BRACKET,SUPPORT-LH-PTD BLK | 1 | $27.95 | |
| 35 | 0423-447 | GROMMET,GAUGE MOUNT | 1 | $2.19 | |
| 36 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 37 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 38 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 39 | 0509-044 | HEADLIGHT,RH-ASSY | 1 | $163.95 | |
| 39 | 0509-035 | HEADLIGHT, LH - ASSY | 1 | $163.95 | |
| 40 | 0409-055 | BULB,HEADLIGHT-881 | 1 | $20.95 | |
| 41 | 0623-785 | SCREW,SELF TAP-HWH #10-16 X 1 TYPE B Z&Y | 1 | $0.68 | |
| 42 | 0423-514 | STUD,DOUBLE END-M5X.8 | 1 | $4.95 | |
| 43 | 0423-522 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $1.92 | |
| 44 | 0423-513 | KNOB,ADJUSTMENT-M5 | 1 | $5.65 |
