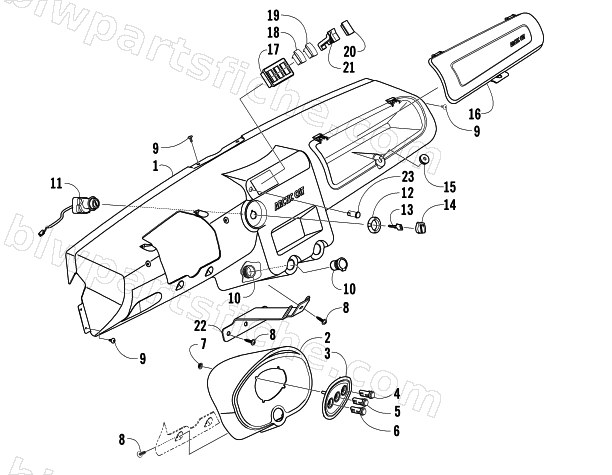

DASH ASSEMBLY
2008 PROWLER 650 H1 AUTOMATIC 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1436-213 | KIT-PANEL,DASH-PROWLER(STANDARD/XT) | 1 | $151.95 | |
| 2 | 1406-727 | POD, INSTRUMENT - BLACK | 1 | $77.95 | |
| 3 | 0405-214 | BEZEL,LIGHTS-POD | 1 | $17.95 | |
| 4 | 0420-068 | LIGHT,INDICATOR-TEMP | 1 | $16.49 | |
| 5 | 0420-066 | LIGHT,INDICATOR-"N" | 1 | $13.73 | |
| 6 | 0420-067 | LIGHT,INDICATOR-"R" | 1 | $16.49 | |
| 7 | 0423-357 | NUT, STAMPED-1/4" (SD 25001 SOH) | 1 | $0.95 | |
| 8 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 9 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 10 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 11 | 0430-089 | R/B 0609-936 | 1 | $72.95 | |
| 12 | 0430-050 | NUT,FLANGE-KEYSWITCH | 1 | $1.92 | |
| 13 | 0430-042 | KEY,IGNITION SERIES-Y (LH BLANK) | 1 | $5.92 | |
| 13 | 0430-043 | KEY,IGNITION SERIES-Z (RH BLANK) | 1 | $11.95 | |
| 14 | 0430-054 | COVER,KEY | 1 | $15.11 | |
| 15 | 0423-541 | GROMMET,LATCH-GLOVE BOX | 1 | $4.54 | |
| 16 | 4506-420 | COVER,GLOVEBOX-BLK W/DECAL | 1 | $30.95 | |
| 17 | 0409-069 | PANEL,SWITCH MOUNT | 1 | $20.63 | |
| 18 | 0409-067 | SWITCH,LIGHTS | 1 | $56.95 | |
| 19 | 0409-074 | SWITCH,2WD/4WD | 1 | $42.95 | |
| 20 | 0409-070 | PLUG,SWITCH HOLE | 1 | $3.57 | |
| 21 | 0502-905 | LEVER,DIFFERENTIAL LOCK-ASSEMBLY | 1 | $30.95 | |
| 22 | 2506-192 | BRACKET,SUPPORT-LOWER-DASH-BLK | 1 | $20.95 | |
| 23 | 0420-076 | LIGHT,INDICATOR-PARKING BRAKE | 1 | $17.87 |
