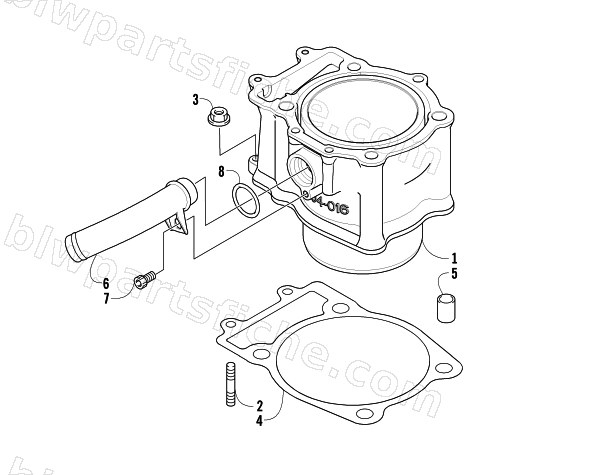

2008 Arctic Cat PROWLER 650 H1 AUTOMATIC 4X4 — CYLINDER AND PISTON ASSEMBLY
2008 PROWLER 650 H1 AUTOMATIC 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0804-016 | CYLINDER, A650 | 1 | $648.95 | |
| 2 | 0827-002 | STUD, M6 x 1 x 38 | 1 | $2.47 | |
| 3 | 8424-604 | NUT,HEX-FLG M6X1.0 CL8 RIE SIL | 1 | $0.54 | |
| 4 | 0830-084 | GASKET,BASE | 1 | $13.73 | |
| 5 | 0829-002 | DOWEL, SPLIT, 13 x 18 | 1 | $2.88 | |
| 6 | 0804-047 | FITTING,COOLANT | 1 | $58.95 | |
| 7 | 8468-612 | SCREW,MACH-TSPNH M5X0.8X20 CL8.8 BLK | 1 | $1.23 | |
| 8 | 0830-007 | O-RING, 21.9 ID X 2.7 W | 1 | $0.68 |
