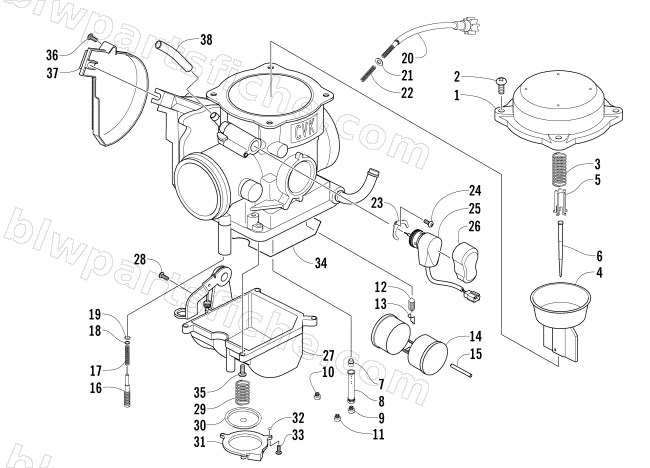

CARBURETOR
2008 PROWLER 650 H1 AUTOMATIC 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0470-742 | CARB,CVK 36-AE (W/PUMPER)(PROWLER) | 1 | $486.95 | |
| 1 | 5507-001 | COVER, TOP | 1 | $66.95 | |
| 2 | 5507-002 | SCREW, TOP COVER | 1 | $0.40 | |
| 3 | 5507-066 | SPRING | 1 | $6.47 | |
| 4 | 5507-099 | PISTON,VACUUM | 1 | $140.95 | |
| 5 | 5507-005 | SPRING SEAT | 1 | $3.16 | |
| 6 | 5507-201 | JET NEEDLE | 1 | $26.95 | |
| 7 | 5507-007 | NEEDLE JET | 1 | $26.95 | |
| 8 | 5507-047 | HOLDER, NEEDLE- JET | 1 | $26.95 | |
| 9 | 5507-076 | JET, MAIN-138 | 1 | $13.73 | |
| 9 | 5507-075 | JET, MAIN-132 | 1 | $13.73 | |
| 9 | 5507-074 | JET, MAIN-130 | 1 | $13.73 | |
| 9 | 5507-057 | MAIN, JET(135) | 1 | $16.49 | |
| 9 | 5507-073 | JET, MAIN-128 | 1 | $13.73 | |
| 9 | 5507-043 | MAIN JET 142 | 1 | $16.49 | |
| 10 | 5507-070 | JET, SLOW #40 | 1 | $20.63 | |
| 11 | 5507-112 | STARTER/MAIN JET 85 | 1 | $20.63 | |
| 12 | 5507-183 | FLOAT VALVE SET | 1 | $37.95 | |
| 14 | 5507-039 | FLOAT SET | 1 | $37.95 | |
| 16 | 5507-213 | PILOT SCREW SET | 1 | $26.95 | |
| 20 | 5507-027 | STOP SCREW COMP. | 1 | $122.95 | |
| 21 | 5507-028 | WASHER | 1 | $0.40 | |
| 22 | 5507-029 | SPRING | 1 | $5.92 | |
| 23 | 5507-115 | PLATE | 1 | $17.87 | |
| 24 | 5507-117 | SCREW | 1 | $1.23 | |
| 25 | 5507-204 | AUTO BY-ST-ASS'Y | 1 | $292.95 | |
| 26 | 5507-114 | COVER | 1 | $66.95 | |
| 28 | 5507-050 | SCREW, DRAIN | 1 | $3.02 | |
| 29 | 5507-211 | SPRING | 1 | $6.75 | |
| 30 | 5507-197 | DIAPHRAGM | 1 | $42.95 | |
| 31 | 5507-198 | PUMP HOUSING | 1 | $20.63 | |
| 32 | 5507-034 | U RING | 1 | $3.02 | |
| 33 | 5507-035 | SCREW | 1 | $1.23 | |
| 34 | 5507-067 | O-RING, FLOAT CHAMBER | 1 | $16.49 | |
| 35 | 5507-017 | SCREW | 1 | $7.30 | |
| 36 | 5507-037 | SCREW(TOP COVER) | 1 | $0.95 | |
| 37 | 5507-036 | COVER | 1 | $4.95 | |
| 38 | 0410-056 | HOSE,VENT-CARBURATOR | 1 | $16.49 |
