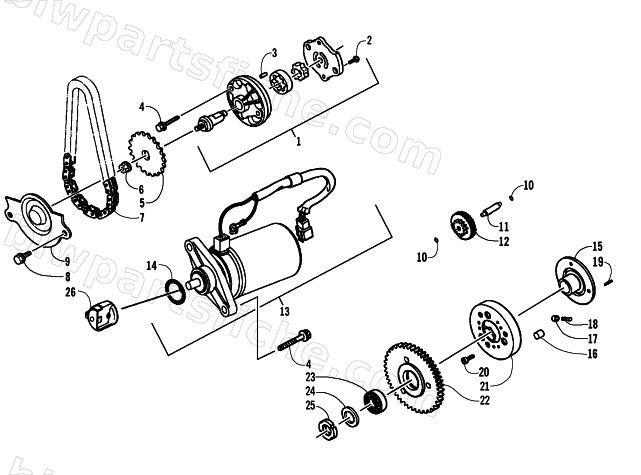

2008 Arctic Cat 90 DVX CALIFORNIA — STARTER MOTOR AND OIL PUMP ASSEMBLIES
2008 90 DVX CALIFORNIA
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-045 | OIL PUMP ASSY | 1 | $64.95 | |
| 2 | 3304-426 | SCREW PAN 3*10 | 1 | $0.81 | |
| 3 | 3304-144 | PIN DOWEL 4*6.5 | 1 | $1.37 | |
| 4 | 3303-384 | BOLT FLANGE SH 6*25 | 1 | $0.81 | |
| 5 | 3303-046 | SPRKT OIL PUMP DRIVEN **9000 C.2000.04 | 1 | $12.35 | |
| 6 | 3303-331 | NUT FLANGE 6MM | 1 | $0.55 | |
| 7 | 3303-047 | CHAIN OIL PUMP | 1 | $33.95 | |
| 8 | 3303-381 | BOLT FLANGE SH 6*12 | 1 | $0.81 | |
| 9 | 3303-051 | SEPARATOR OIL **9000 C.98.11.16. | 1 | $3.57 | |
| 10 | 3303-282 | WASHER 24*8.5 **0000 C.97.07.26. | 1 | $1.23 | |
| 11 | 3303-110 | SHAFT START REDUCTION **9000 C.97.09.18 | 1 | $20.63 | |
| 12 | 3303-109 | GEAR COMP ST REDUCTION **9000 C.97.09.18 | 1 | $69.95 | |
| 13 | 3304-639 | MOTOR ASSY START | 1 | $138.95 | |
| 14 | 3303-604 | O-RING | 1 | $1.78 | |
| 15 | 3303-115 | BOSS STARTER CLUTCH **9000 C.97.09.18. | 1 | $58.95 | |
| 16 | 3303-293 | ROLLER 10.2*11.5 **9000 C.97.07.26. | 1 | $3.30 | |
| 17 | 3303-114 | STARTING ROLLER SPG **9000 C.97.09.18. | 1 | $1.92 | |
| 18 | 3303-113 | SPG ROLLER ST CLUTCH **0000 C.97.09.18 | 1 | $1.64 | |
| 19 | 3303-395 | ROLLER 6*10 | 1 | $1.78 | |
| 20 | 3303-396 | SOCKET BOLT 6*12 | 1 | $1.95 | |
| 21 | 3303-112 | OUTER COMP ST CLUTCH **9000 C.97.09.18. | 1 | $74.95 | |
| 22 | 3303-111 | GEAR COMP STARTER **(1) C.97.11.04. | 1 | $60.95 | |
| 23 | 3303-292 | BRG BALL RADIAL 6005-2NG/25*47*12 | 1 | $33.95 | |
| 24 | 3303-285 | CIR CLIP B 1I 14 | 1 | $4.40 | |
| 25 | 3303-258 | NUT SPECIAL 24MM **9000 C.97.07.26. | 1 | $3.02 | |
| 26 | 3303-130 | HOLDER COMP STARTER REDUCTION **9000 | 1 | $20.63 |
