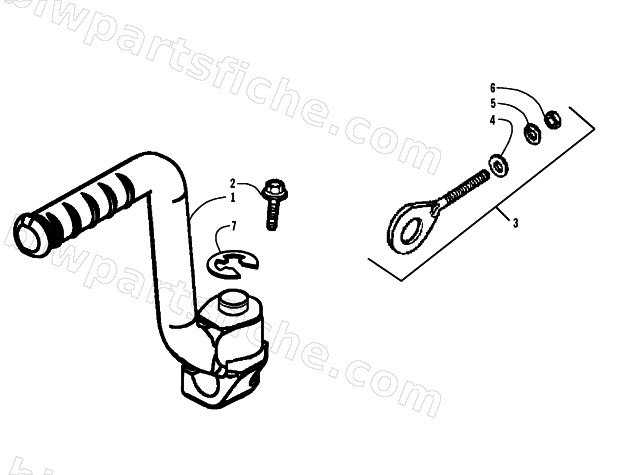

KICK STARTER ASSEMBLY

2008 90 DVX CALIFORNIA

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	3303-123	ARM ASSY KICK STARTER	1	$54.95
2	3304-551	BOLT FLANGE 6*22	1	$0.81
3	3303-147	DRIVE CHAIN ADJUSTER ASSY	1	$6.34
4	3304-135	WASHER PLAIN 8MM	1	$0.85
5	3303-607	WASHER SPRING 8MM	1	$0.81
6	3304-125	NUT HEX 8MM	1	$0.81
7	3305-247	E-RING 10mm	1	$1.78
