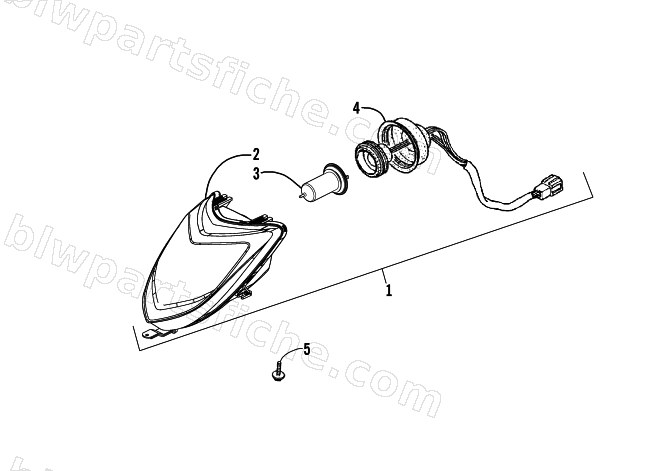

2008 Arctic Cat 90 DVX CALIFORNIA — HEADLIGHT ASSEMBLY
2008 90 DVX CALIFORNIA
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3304-280 | LIGHT ASSY R HEAD | 1 | $203.95 | |
| 2 | 3304-281 | UNIT HEAD LIGHT | 1 | $180.95 | |
| 3 | 3303-846 | BULB HEAD LIGHT | 1 | $42.95 | |
| 4 | 3304-282 | SOCKET COMP | 1 | $37.95 | |
| 5 | 3304-650 | SCREW TAPPING 5*16 (CIRCLE HEAD) | 1 | $1.50 |
