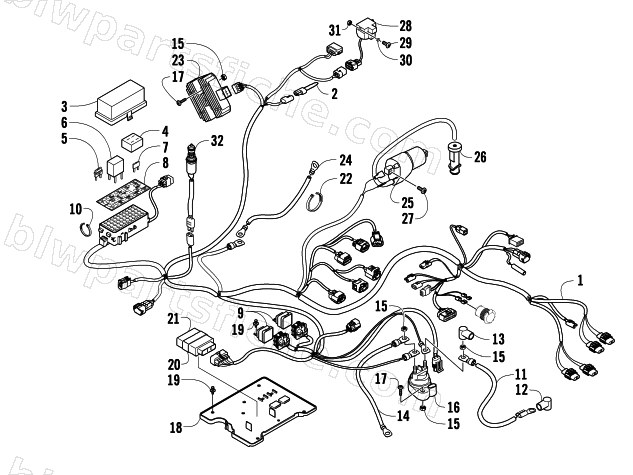

2008 Arctic Cat 700 H1 EFI 4X4 AUTOMATIC FIS — WIRING HARNESS ASSEMBLY
2008 700 H1 EFI 4X4 AUTOMATIC FIS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0486-277 | HARNESS/DIA,MAIN (08 700-H1 FIS) | 1 | $668.95 | |
| 2 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 | |
| 3 | 0530-008 | COVER, PDM - ASSY | 1 | $34.95 | |
| 4 | 0430-037 | HOLDER,SPARE FUSE-FOAM | 1 | $3.02 | |
| 5 | 0430-034 | DIODE, MINI-1A | 1 | $16.49 | |
| 6 | 0430-045 | RELAY,SPST-4P 12V/20A | 1 | $30.95 | |
| 7 | 0430-032 | FUSE, MINI-10A | 1 | $3.02 | |
| 7 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 7 | 0430-030 | FUSE, MINI-30A | 1 | $2.88 | |
| 8 | 1411-526 | DECAL,PDM (08 H2) | 1 | $100.95 | |
| 9 | 0430-052 | RELAY,SPDT-30A WP | 1 | $30.95 | |
| 10 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 11 | 0445-064 | CABLE,SOLENOID-STARTER (19" RED #6) | 1 | $30.95 | |
| 12 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 13 | 0645-327 | BOOT,TERMINAL-SOLENOID | 1 | $1.64 | |
| 14 | 0445-062 | CABLE,BATTERY-SOLENOID (8.5" RED #6) | 1 | $9.59 | |
| 15 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 16 | 0445-058 | SOLENOID,STARTER RELAY | 1 | $37.95 | |
| 17 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 18 | 2406-643 | TRAY,ELECTRICAL | 1 | $45.95 | |
| 19 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 20 | 0430-076 | CUSHION,CASE-ECU | 1 | $13.73 | |
| 21 | 0530-028 | ECU,EFI-H1-PROGRAMMED (B '09 MT FIS) | 1 | $687.95 | |
| 22 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 23 | 0824-037 | REGULATOR,VOLTAGE (W/TACH SIGNAL) | 1 | $113.95 | |
| 24 | 0445-063 | CABLE,BATTERY-ENGINE (27" BLK #6) | 1 | $33.95 | |
| 25 | 0824-043 | COIL,IGNITION-EFI INDUCTIVE | 1 | $252.95 | |
| 26 | 0824-049 | CAP,SPARK PLUG () | 1 | $15.11 | |
| 27 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 28 | 0409-064 | SENSOR,INCLINATION (AD) | 1 | $90.95 | |
| 29 | 8468-425 | SCREW,MACH-TSPNH M4X.7X25 CL8.8 BLK | 1 | $0.54 | |
| 30 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 31 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 32 | 0409-089 | SWITCH,BRAKE-FOOT | 1 | $58.95 |
