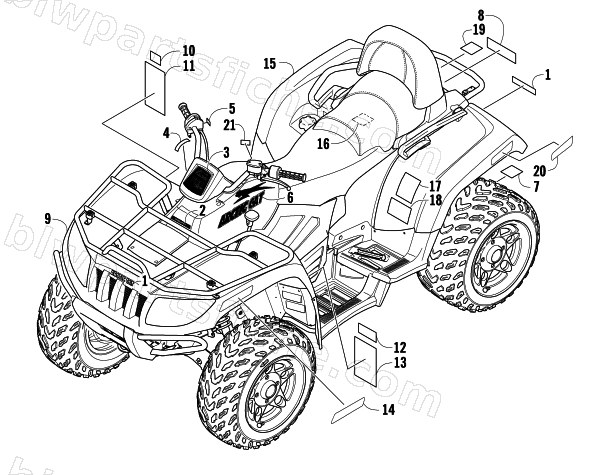

2008 Arctic Cat 700 EFI AUTOMATIC TRANSMISSION 4X4 TRV LE — BODY PANELS AND DECALS
2008 700 EFI AUTOMATIC TRANSMISSION 4X4 TRV LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1411-725 | DECAL,GRAPHIC-REAR (BLACK) | 1 | $4.95 | |
| 2 | 1411-050 | DECAL,SPEEDRACK | 1 | $1.78 | |
| 3 | 1411-849 | DECAL,GRAPHIC-POD-700 TRV | 1 | $20.63 | |
| 4 | 0411-426 | DECAL,WARNING-CLUTCH COVER-ATV | 1 | $3.30 | |
| 5 | 0411-966 | DECAL,WARNING DIFF LOCK(MINIATURE) | 1 | $1.78 | |
| 6 | 1411-634 | DECAL,SIDE-ARCTIC CAT-RH(A&B BODY) | 1 | $19.25 | |
| 6 | 1411-635 | DECAL,SIDE-ARCTIC CAT-LH(A&B BODY) | 1 | $19.25 | |
| 7 | 1411-077 | R/B 4411-550 | 1 | $3.95 | |
| 8 | 0411-814 | DECAL,"ARCTIC CAT"-WHT | 1 | $50.95 | |
| 9 | 4506-292 | FENDER,FRONT BLACK-ASSY | 1 | $360.95 | |
| 10 | 0411-894 | DECAL,WARNING HILL (TRV) | 1 | $4.95 | |
| 11 | 0411-666 | DECAL,WARNING-PRE RIDE (AE) | 1 | $23.39 | |
| 12 | 1411-574 | DECAL,WARNING-OFF ROAD ONLY | 1 | $3.30 | |
| 13 | 0411-753 | DECAL, WARNING-TRV GENERAL/AGE | 1 | $17.87 | |
| 14 | 0411-818 | REFLECTOR,FRONT-RH | 1 | $6.47 | |
| 14 | 0411-819 | REFLECTOR,FRONT-LH | 1 | $6.47 | |
| 15 | 4506-310 | FENDER,REAR BLACK-ASSY(TRV) | 1 | $407.95 | |
| 16 | 1411-269 | DECAL,WARNING PASSENGER TRV | 1 | $24.77 | |
| 17 | 0411-833 | DECAL,WARNING-TRV PASSENGER | 1 | $12.35 | |
| 18 | 0411-832 | DECAL,WARNING-TIRE PRESSURE | 1 | $10.97 | |
| 19 | 1411-251 | DECAL,WARNING SEAT-PASSENGER | 1 | $12.35 | |
| 20 | 1411-592 | REFLECTOR,REAR-RH | 1 | $5.37 | |
| 20 | 1411-593 | REFLECTOR,REAR-LH | 1 | $5.37 | |
| 21 | 1411-865 | DECAL,WARNING-BRAKE LEVER LOCK | 1 | $3.30 |
