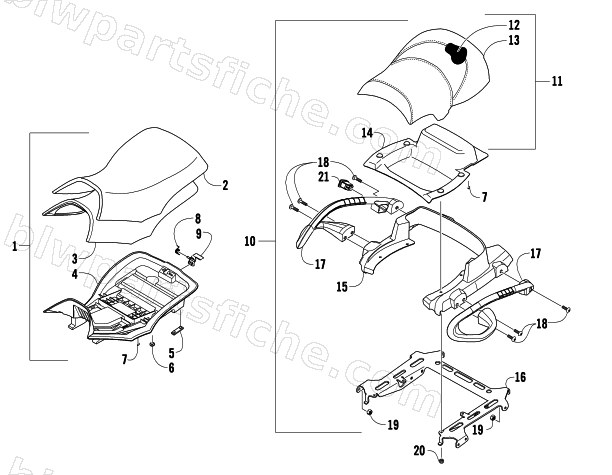

2008 Arctic Cat 700 EFI AUTOMATIC TRANSMISSION 4X4 TRV CRUISER — SEAT ASSEMBLY
2008 700 EFI AUTOMATIC TRANSMISSION 4X4 TRV CRUISER
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4506-557 | SEAT,ASSEMBLY (H1) | 1 | $324.95 | |
| 2 | 1506-209 | COVER, SEAT | 1 | $129.95 | |
| 3 | 1506-208 | FOAM, SEAT-MOLDED | 1 | $120.95 | |
| 4 | 2416-826 | BASE,SEAT (H1) | 1 | $66.95 | |
| 5 | 0406-879 | BUMPER, SEAT | 1 | $3.71 | |
| 6 | 0406-877 | BUMPER,SEAT | 1 | $3.57 | |
| 7 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 8 | 1406-592 | SPRING,LATCH | 1 | $1.78 | |
| 9 | 1506-156 | LATCH,SEAT-WELDMENT | 1 | $30.95 | |
| 10 | 2506-848 | SEAT,AUX-ASSY(CRUISER) | 1 | $744.95 | |
| 11 | 2506-064 | SEAT,AUX-SUB-ASSEMBLY | 1 | $292.95 | |
| 12 | 1506-816 | FOAM,SEAT-PASSENGER | 1 | $136.95 | |
| 13 | 1506-815 | COVER,SEAT-PASSENGER | 1 | $122.95 | |
| 14 | 2406-110 | BASE,SEAT-INNER | 1 | $58.95 | |
| 15 | 2406-044 | BASE,SEAT-FASCIA | 1 | $145.95 | |
| 16 | 1506-932 | BRACKET,SEAT SUPPORT-ASSY | 1 | $169.95 | |
| 17 | 2406-744 | HANDHOLD,RH-HEATED | 1 | $156.95 | |
| 17 | 2406-745 | HANDHOLD,LH-HEATED | 1 | $156.95 | |
| 18 | 8468-830 | SCREW,MACH-TSPNH M8X1.25X30 CL8.8 BLK | 1 | $9.59 | |
| 19 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 20 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 21 | 0609-835 | SWITCH, PASS-HAND WARMER | 1 | $69.95 |
